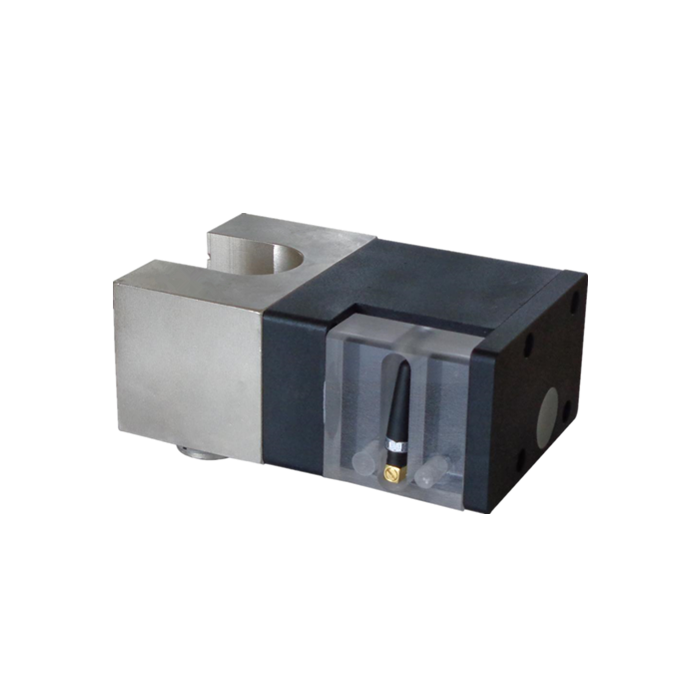

Oilfield wireless dynamometer,transducer SM35
Wireless Load Displacement (Dynamometer) Transducer
Specially designed for oil well dynamometer testing.
Description
SPECIFICATION:
| PARAMETER | VALUE |
| Capacity | Load:0～150KN, Accuracy: 0.5％F.S；
Acceleration displacement: 1～12m, Accuracy: 2.0% F.S; Stroke frequency: min 1 time/min, Accuracy :1％ |
| Optional battery | Built-in high-energy solar rechargeable battery 3.6V / 8000mAh or 3.6V / 38,000mAh high-energy battery |
| Low power | Sleep current＜22uA, average operating current after wake-up <50mA. |

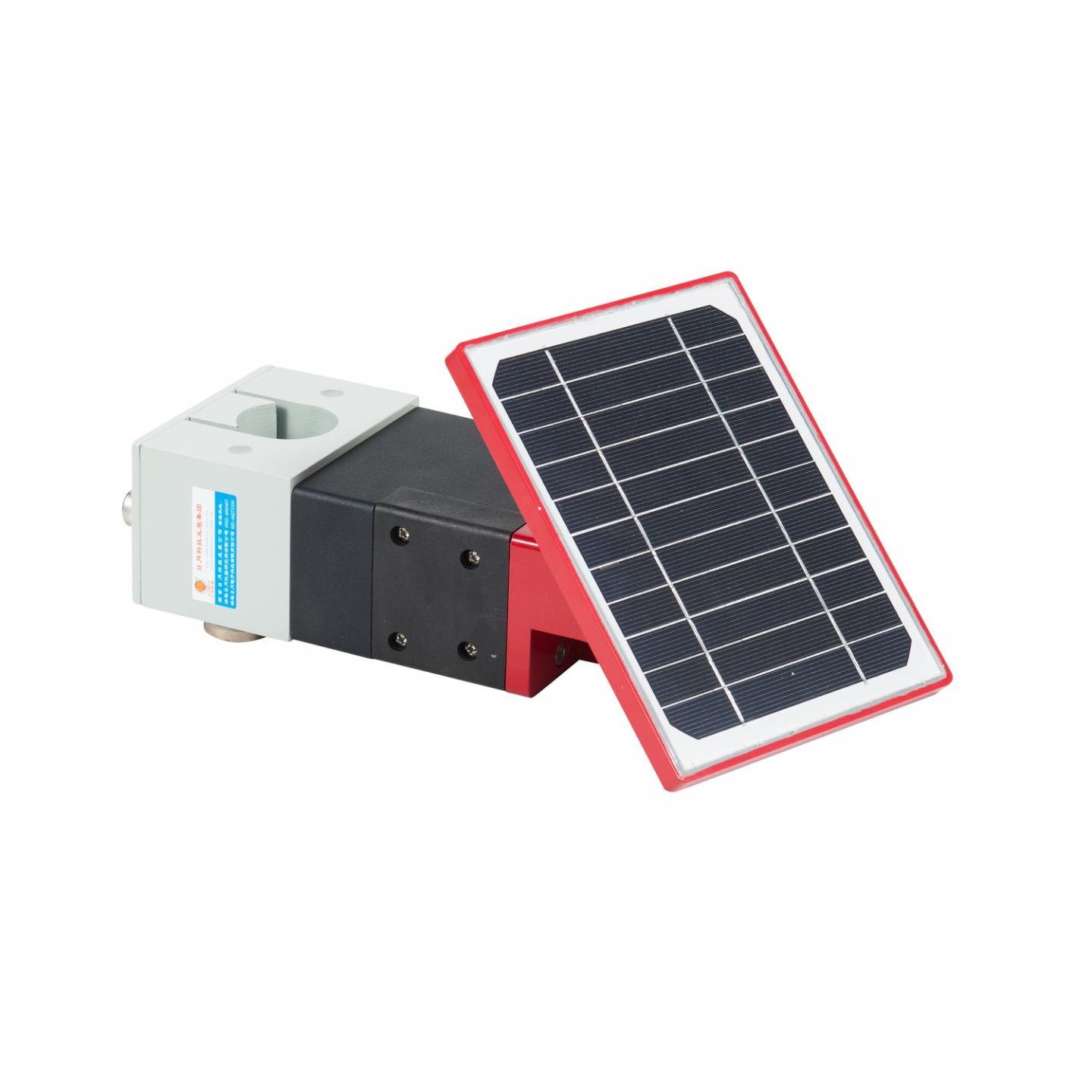

| Solar panel | 3.5VA,90º free rotation |
| Density collection | Dynamometer point≥200, frequency≥10mins(settable) |
| Environment protection | IP68 |
| Explosion-Proof | Certificate authority: Chinese explosion-proof electrical inspection agency PCEC
Explosion-proof certificate no.: CE13.2145 Explosion-proof marking: Ex ib II C T4 Gb |
| Operating temperature range | －40～＋85℃
-25~+85℃(Solar type) |
| Wireless communication | 4G/5G mobile communication
NB-IOT standard |
| ZigBee PRO standard; LoRa standard; | |
| Transducer ID | Calculate unique network communication parameters (network ID, channel number, etc.) based on the well name or specified identifier. |
| U-shaped opening size | Regular φ40mm; φ32, φ35, φ45, φ50 mm available too.
Customized available. |
