Description
1. Summary

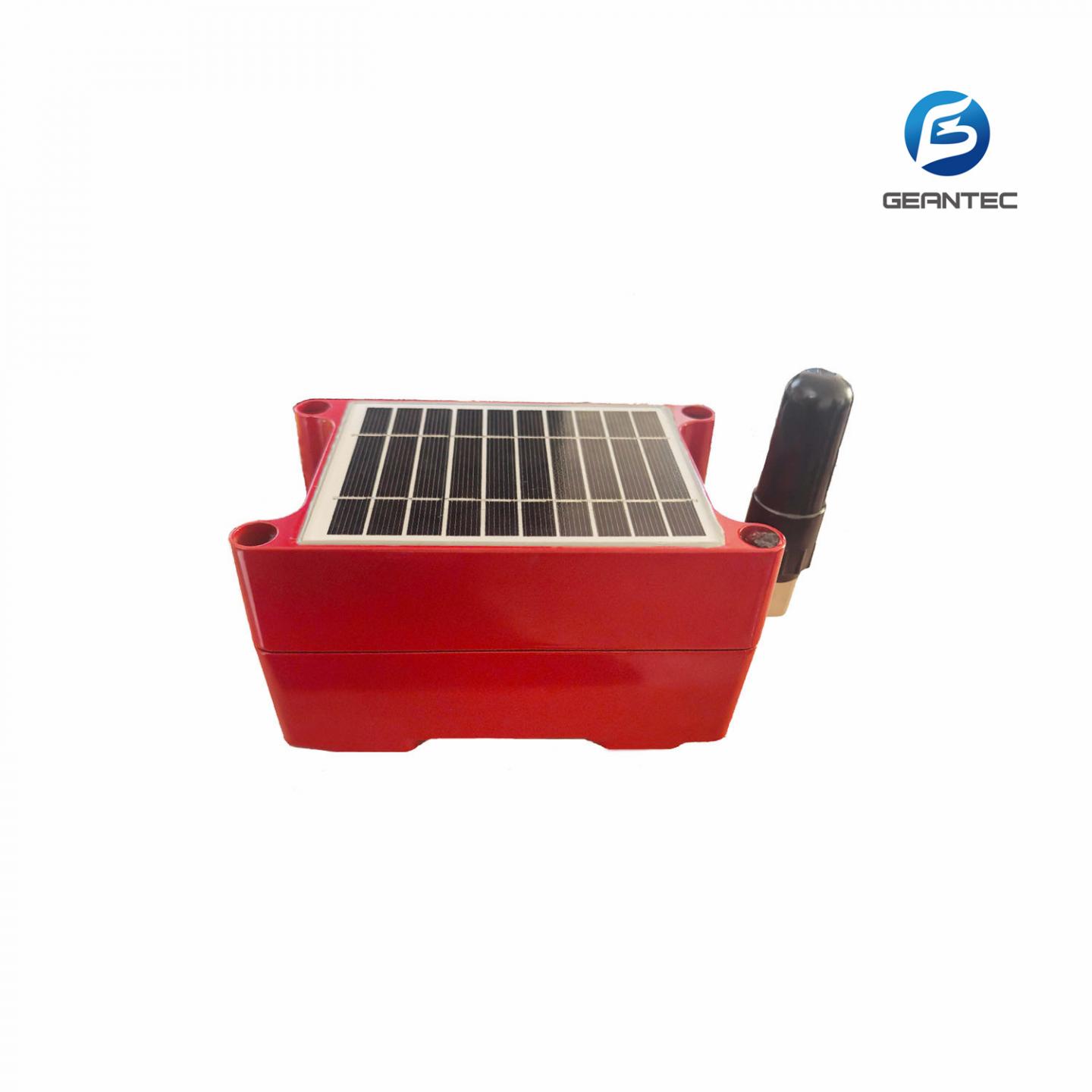

SM36 series wireless angular displacement transducer is designed for beam pumping well position feedback and angle detection. It integrates micro-power ZigBee communication, inclination sensor, low-power single-chip microcomputer and other technologies. It is one of the important front-end acquisition equipment for the construction of digital oilfield oil and gas IoT production. It realizes dyno-card remote measurement, through measurement the inclination angle of the beam pumping unit periodically and online synchronously with the SM34/35 series wireless load sensor and transmits remotely through the local wireless data communication network.
2. Specification
| Item | Specification | |
| Measurement | Angle | -45°～+45°; Accuracy: 0.5％F.S; stability: ±0.1%F.S/year |
| Acquisition points | Max 255 points; frequency≥10mins(settable)
alarm when start and stop |
|
| Power supply | Battery type | Disposable lithium battery 3.7V / 38Ah |
| Solar & battery type | Monocrystalline silicon solar panel 5V/200mA, Lithium battery 3.7V/9.6Ah | |
| Wireless
Communication |
Transmission distance | ≥ 100m(direct view in the open space); RF transmission power ≤ 10mW |
| Communication protocol | ZigBee PRO 2007 or SMSF; customized available | |
| Environment | Temperature: －40～＋85℃; -25~+85℃(Solar type) | |
| Relative humidity: 0~100%RH; atmospheric pressure: 86~106 kPa | ||
| Vibration 10～500 Hz, peak acceleration <19.6m/s2 | ||
| AC external magnetic field ≤400A/m. | ||
| Environment protection | IP66 | |
| Explosion-Proof | Ex ia IIC T4 Ga | |
| Rated voltage: 3.7V±1%; Rated current: 50 mA; Rated power: 0.18 W | ||
| Weight | Approx. 2.0kg | |
