Single-point strain gauge load cell GP
FEATURES:
◆Capacity: 50kg-2t
◆Compact structure
◆Strong resistance to partial loading
◆High accuracy, C3
APPLICATION:
◆Platform scale
◆Packing scale
Description

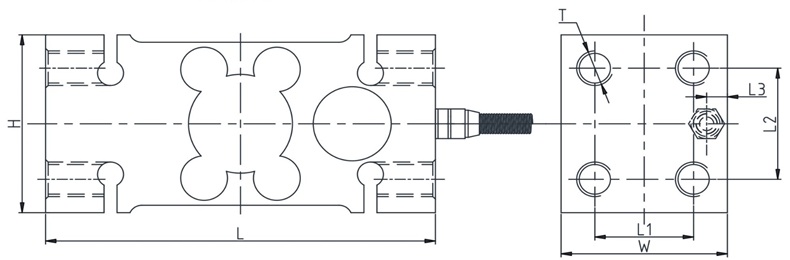

OUTLINE DIMENSIONS:
| Rated capacity | L | W | H | T | L1 | L2 |
| 50,100,150,200,250,300,500,750kg,1t,2t | 150 | 64 | 72 | M14 | 38 | 45 |
SPECIFICATION:
| PARAMETER | VALUE | PARAMETER | VALUE |
| Rated capacity: | 50kg-2t | Maximum safe overload: | 150% F.S |
| Rated output: | 2.0±0.002mv/v | Ultimate safe overload: | 200% F.S |
| Combined error: | ±0.03%F.S | Recommended Excitation: | 10V DC |
| Non-linearity: | ±0.03%F.S | Maximum Excitation: | 15V DC |
| Hysteresis error: | ±0.03%F.S | Environment protection: | IP65 |
| Creep error(30minutes): | ±0.02%F.S | Input impedance: | 382±15Ω |
| Non-repeatability: | ±0.02% F.S | Output impedance: | 352±3Ω |
| Zero balance: | ±3% %F.S | Insulation resistance at 50V DC: | ≥5000MΩ |
| Temperature effect on zero: | ±0.02% F.S/10℃ | Material: | alloy steel |
| Temperature effect on output: | ±0.02% F.S/10℃ | Cable : | length 3m, diameter 5mm |
| Operating temperature range: | -30~+70℃ | Max.platform size: | 800x800mm |
