Single-ended shear beam load cell GSB

Home Load Cells Single-ended shear beam load cell GSB

Single-ended shear beam load cell GSB

FEATURES:

◆Capacity: 300kg - 25t

◆Single-ended shear beam

APPLICATION:

◆Truck scale

◆Platform scale

Load Cells2019-10-14g90

Description

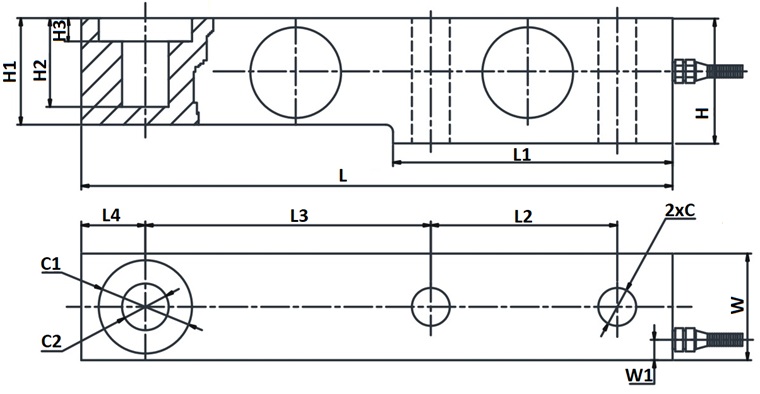

OUTLINE DIMENSIONS:

Rated capacity L L1 L2 L3 L4 H H1 H2 H3 C C1 C2 W W1
300kg-3t 203 95 64 98 22 43 36.6 30.5 8 Φ13 Φ32 Φ16 36.6 7
5-8t 235 110 66 124 22 52 48 30 12 Φ21 Φ38 Φ22 48 7
10t 279 133 82 140 32 67 60 20 8.5 Φ28 Φ48 Φ32 60 8.5
15-25t 318 153 89 159 38 82.5 70 24 9.5 Φ34 Φ54 Φ38 70 9.5

SPECIFICATION:

PARAMETER VALUE PARAMETER VALUE
Rated capacity: 300kg – 25t Operating temperature range: -30 ~ +70℃
Rated output: 2.0±0.002mv/v Maximum safe overload: 150% F.S
Accuracy class: C2~C3 Ultimate safe overload: 200% F.S
Non-repeatability: ±0.02% F.S Recommended Excitation: 10 ~ 12V DC
Non-linearity: ±0.03% F.S Maximum Excitation: 15V DC
Hysteresis error: ±0.03% F.S Environment protection: IP66(300kg-500kg)
IP67(1t-25t)
Zero balance: ±1% F.S Input impedance: 400±20Ω
Creep error(30minutes): ±0.02% F.S Output impedance: 352±3Ω
Temperature effect on zero: ±0.02% F.S/10℃ Insulation resistance at 50V DC: ≥5000MΩ
Temperature effect on output: ±0.02% F.S/10℃ Material: alloy steel, stainless steel
Compensated temperature range: -10 ~ +40℃ Cable length: length
2.6m(300kg-2t), 3.5m(3t),
5.2m(5-8t), 7m(10t),
12m(15-25t);
diameter 6mm



Inquiry Us
