Single-ended shear beam load cell GS
FEATURES:
◆Capacity: 0.1-10t
◆Theaded load hole confirguration
◆Low profile
APPLICATION:
◆Floor scale
◆Tank weighing
Description

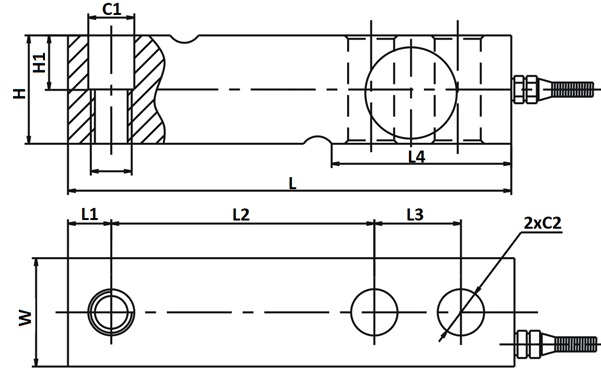

OUTLINE DIMENSIONS:
| Rated capacity | L | L1 | L2 | L3 | L4 | H | H1 | W | C1 | C2 | T |
| 100kg,150kg,200kg,
300kg,500kg,750kg, 1t,1.5t,2t,2.5t |
130 | 12.7 | 76.2 | 25.4 | 53.5 | 31.8 | 15.7 | 31.8 | Φ13.5 | Φ13 | M12 |
| 3,5t | 171.5 | 19 | 95.3 | 38.1 | 72.5 | 38.1 | 26 | 38.1 | Φ20 | Φ20 | M18x1.5 |
| 7.5,10t | 225.5 | 25.3 | 124 | 50.8 | 102 | 50.8 | 25.4 | 50.8 | Φ27 | Φ27 | M24x2 |
SPECIFICATION:
| PARAMETER | VALUE | PARAMETER | VALUE |
| Rated capacity: | 0.1-10t | Operating temperature range: | -30 ~ +70℃ |
| Rated output: | 2.0±0.002mv/v(0.1-0.3t) 3.0±0.003mv/v(0.5-10t) |
Maximum safe overload: | 150% F.S |
| Combined error: | ±0.03% F.S(alloy steel) ±0.05% F.S(stainless steel) |
Ultimate safe overload: | 200% F.S |
| Non-repeatability: | ±0.02% F.S | Recommended Excitation: | 10 ~ 12V DC |
| Non-linearity: | ±0.03% F.S | Maximum Excitation: | 15V DC |
| Hysteresis error: | ±0.03% F.S | Environment protection: | IP67(0.1-0.75t) IP68(1-10t) |
| Zero balance: | ±1% F.S | Input impedance: | 400±20Ω |
| Creep error(30minutes): | ±0.02% F.S | Output impedance: | 352±3Ω |
| Temperature effect on zero: | ±0.02% F.S/10℃ | Insulation resistance at 50V DC: | ≥5000MΩ |
| Temperature effect on output: | ±0.02% F.S/10℃ | Material: | alloy steel, stainless steel |
| Compensated temperature range: | -10 ~ +40℃ | Cable length: | length 1.5m/3m(0.1-2.5t), 4.2m(3-5t),5m(7.5-10t); diameter 6mm |
