S-type, S & Z beam style load cell GET
FEATURES:
•Capacity: 20kg-10t
•Forced by threaded connection
•High accuracy
APPLICATION:
•Testing machine
•Crane scale
•Packing scale
Description

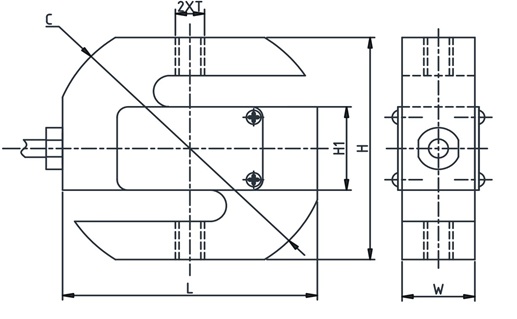

OUTLINE DIMENSIONS:
| Rated capacity | L | W | H | H1 | T |
| 20kg~150kg | 70 | 12 | 64 | 24 | M8 |
| 200kg~500kg | 70 | 20 | 64 | 24 | M12 |
| 700kg~1t | 70 | 25 | 64 | 24 | M12 |
| 1.2t~5t | 88 | 32 | 90 | 38 | M20 |
| 7.5t | 88 | 40 | 90 | 38 | M24 |
| 10t | 110 | 50 | 110 | 46 | M30X2 |
SPECIFICATION:
| PARAMETER | VALUE | PARAMETER | VALUE |
| Rated capacity: | 20kg-10t | Operating temperature range: | -30 ~ +70℃ |
| Rated output: | 2.0±0.003mv/v 1.8±0.003mv/v(10t) |
Maximum safe overload: | 150% OF R.C |
| Combined error: | ±0.03%F.S | Ultimate safe overload: | 200% OF R.C |
| Non-linearity: | ±0.03% F.S | Recommended Excitation: | 10 ~ 12V DC |
| Hysteresis error: | ±0.03% F.S | Maximum Excitation: | 15V DC |
| Non-repeatability: | ±0.02% F.S | Environment protection: | IP65(20kg-1t);IP68(1.2-10t) |
| Zero balance: | ±1% F.S | Input impedance: | 400±20Ω |
| Creep error(30minutes): | ±0.03% F.S | Output impedance: | 352±5Ω |
| Temperature effect on zero: | ±0.02% F.S/10℃ | Insulation resistance at 50V DC: | ≥5000MΩ |
| Temperature effect on output: | ±0.02% F.S/10℃ | Material: | alloy steel, stainless steel |
| Compensated temperature range: | -10 ~ +40℃ | Cable : | length 2.6m, diameter 5mm(20kg-1t) length 3m, diameter 6mm(1.2-7.5t) length 3m, diameter 5mm(10t) |
