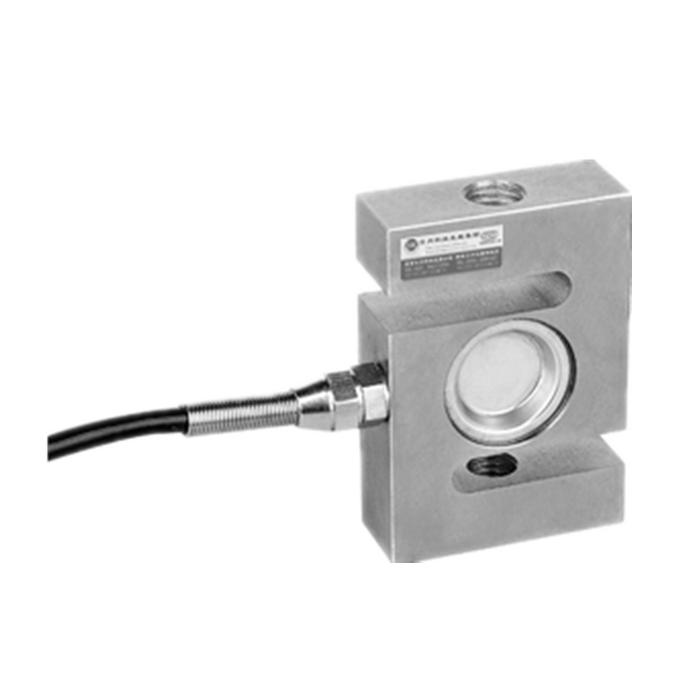

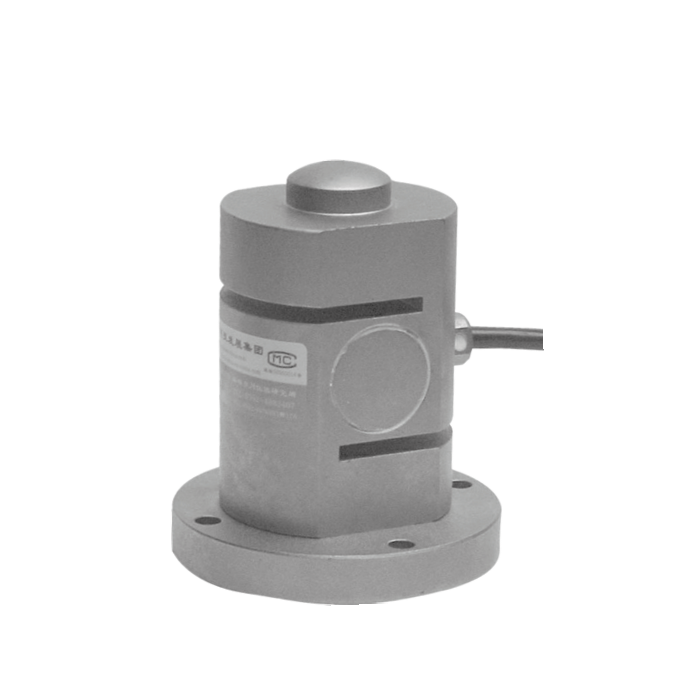

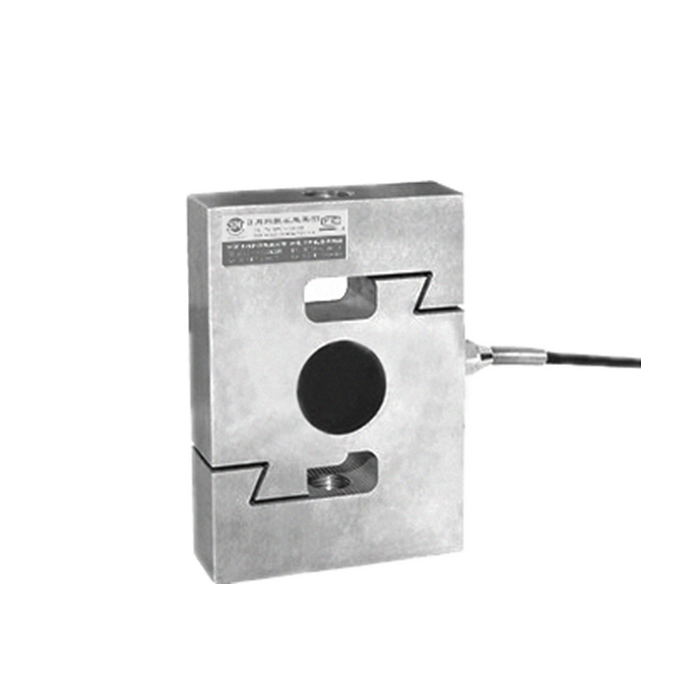

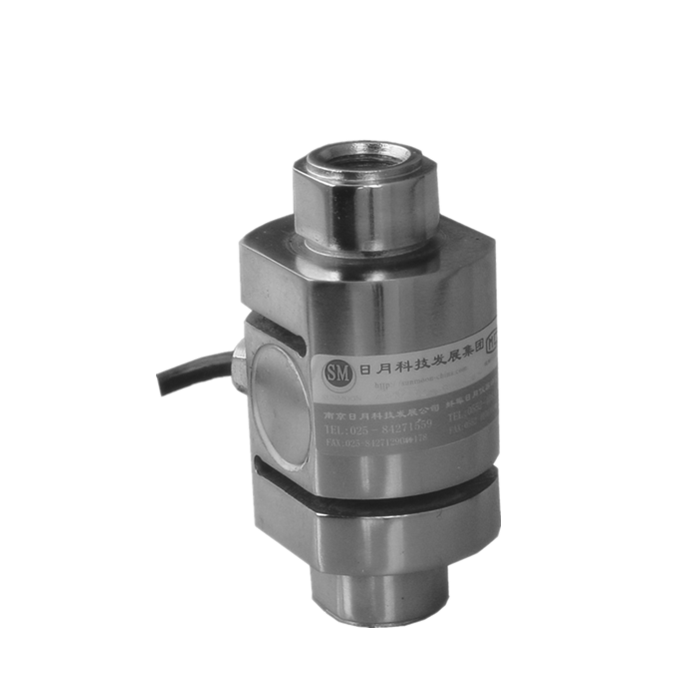

S-type, S & Z beam style load cell GE
FEATURES:
◆Capacity: 50kg-10t
◆Threaded connection
◆High accuracy, C3
APPLICATION:
◆Testing machine
◆Crane scale
◆Packing scale
Description

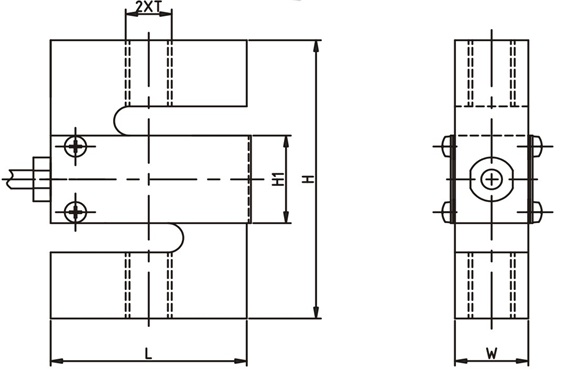

OUTLINE DIMENSIONS:
| Rated capacity | L | H | W | T |
| 50kg-750kg | 51 | 76.2 | 19.1 | M12X1.75 |
| 1t | 51 | 76.2 | 25.4 | M12X1.75 |
| 1.2t-5t | 76.2 | 100.4 | 38.1 | M20x1.5 |
| 10t | 127 | 177.8 | 50.4 | M30X2 |
SPECIFICATION:
| PARAMETER | VALUE | PARAMETER | VALUE |
| Rated capacity: | 50kg-10t | Operating temperature range: | -30 ~+70℃ |
| Rated output: | 2.0±0.003mv/v(GE) 3.0±0.003mv/v(GF) |
Maximum safe overload: | 150% OF R.C |
| Combined error: | ±0.03% F.S | Ultimate safe overload: | 200% OF R.C |
| Non-linearity: | ±0.03% F.S | Recommended Excitation: | 10 ~ 12V DC |
| Hysteresis error: | ±0.03% F.S | Maximum Excitation: | 15V DC |
| Non-repeatability: | ±0.02% F.S | Environment protection: | IP66(50kg-1t) IP67(1.2-10t) |
| Zero balance: | ±1% F.S | Input impedance: | 400±20Ω(1.5t-5t) |
| Creep error(30minutes): | ±0.03% F.S | Output impedance: | 352±3Ω |
| Temperature effect on zero: | ±0.02% F.S | Insulation resistance at 50V DC: | ≥5000MΩ |
| Temperature effect on output: | ±0.02% F.S | Material: | alloy steel |
| Compensated temperature range: | -10~ +40℃ | Cable: | length 3m, diameter 5mm |
