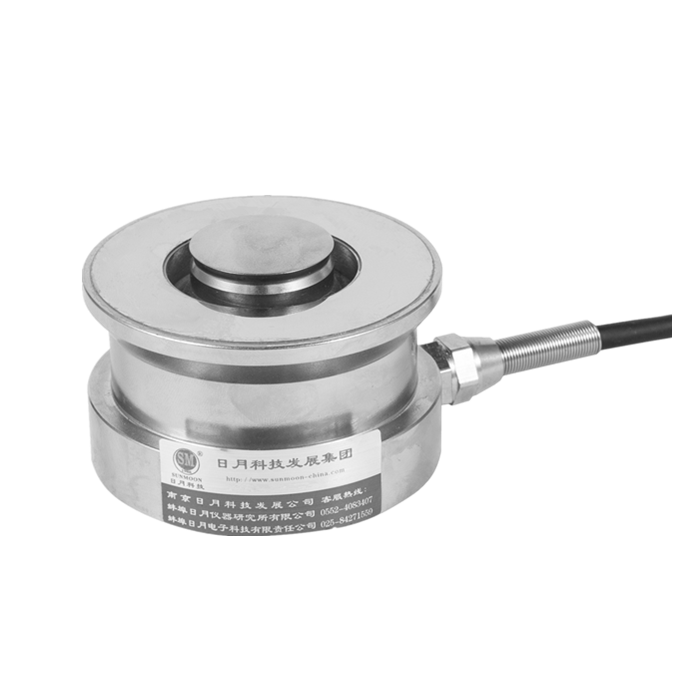

Ring torsion load cell/sensor GN
FEATURES:
◆Capacity:1-470t
◆Load-bearing force with small facet
◆Low height
APPLICATION:
◆Platform scale
◆Hopper scale
Description

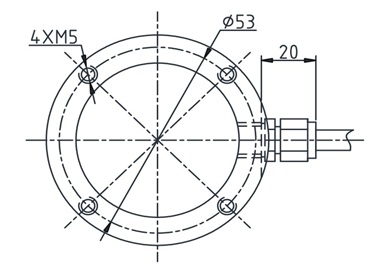

OUTLINE DIMENSIONS:

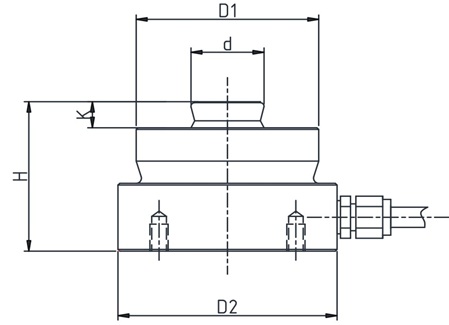

1-4.7t
| Rated capacity | D1 | D2 | d | K | H | D3 | D4 |
| 1t~4.7t | Φ50 | Φ60 | Φ20 | 7.5 | 43 | 53 | M5 |

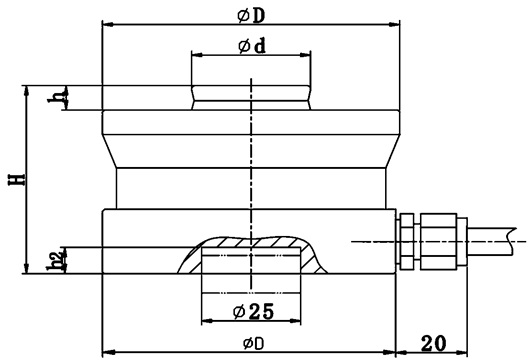

10-470t
| Rated capacity | D | d | H | h | h2 |
| 10t，15t，22t | 75 | 30 | 50 | 6.5 | 7 |
| 33t | 95 | 40 | 65 | 10 | 7 |
| 47t | 130 | 60 | 75 | 14 | 7 |
| 68t | 130 | 60 | 85 | 14 | 7 |
| 100t | 150 | 70 | 90 | 16 | 7 |
| 150t | 150 | 70 | 100 | 16 | 7 |
| 220t | 225 | 100 | 130 | 24 | 10 |
| 330t | 225 | 100 | 145 | 24 | 10 |
| 470t | 270 | 120 | 170 | 28 | 10 |
SPECIFICATION:
| PARAMETER | VALUE | PARAMETER | VALUE |
| Rated capacity: | 1-4.7t,10-470t | Operating temperature range: | -30 ~ +70℃ |
| Rated output: | 2.85±0.015mv/v | Maximum safe overload: | 150% F.S |
| Combined error: | ±0.1% F.S(1t-150t) ±0.3% F.S(220t-470t) |
Ultimate safe overload: | 200% F.S |
| Non-repeatability: | ±0.02% F.S | Recommended Excitation: | 10 ~ 12V DC |
| Non-linearity: | ±0.05% F.S, ±0.1% F.S | Maximum Excitation: | 15V DC |
| Hysteresis error: | ±0.05% F.S, ±0.1% F.S | Environment protection: | IP67 |
| Zero balance: | ±1% F.S | Input impedance: | 1450±10Ω |
| Creep error(30minutes): | ±0.03% F.S | Output impedance: | 1402±5Ω |
| Temperature effect on zero: | ±0.02% F.S/10℃ | Insulation resistance at 50V DC: | ≥5000MΩ |
| Temperature effect on output: | ±0.03% F.S/10℃ | Material: | alloy steel, stainless steel |
| Compensated temperature range: | -10 ~ +40℃ | Cable: | length 8m(1-4.7t), 12m(10-33t), 16m(47-470t) diameter 6mm |
