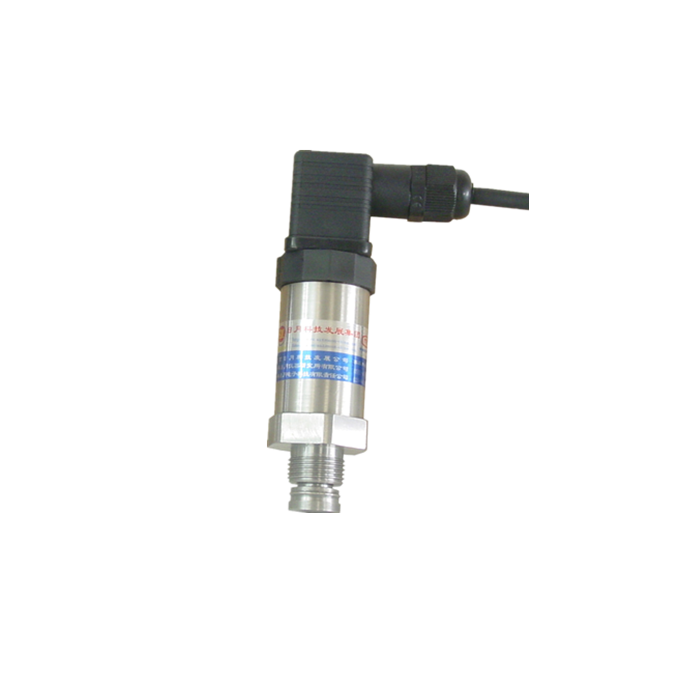

Pressure transducers, pressure sensors & transmitters G25

FEATURES:

◆Capacity: 1～200MPa

◆Using Karma strain gage

◆With 316S stainless steel isolation diaphragm, can touch the corrosive medium directly(gas, liquid, steam)

◆Compact size, light weight, easy installation and quick response

Construction Solution

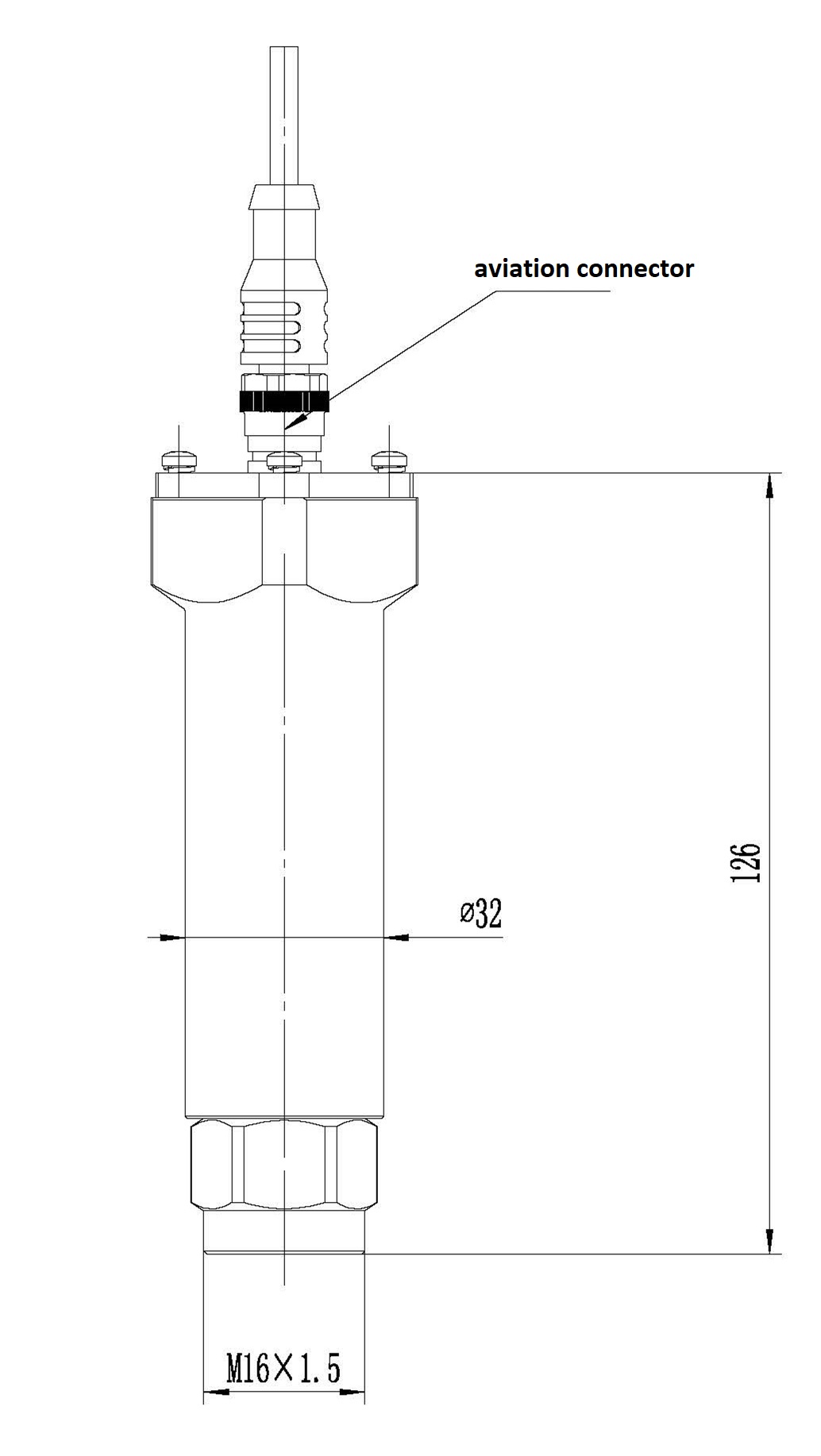

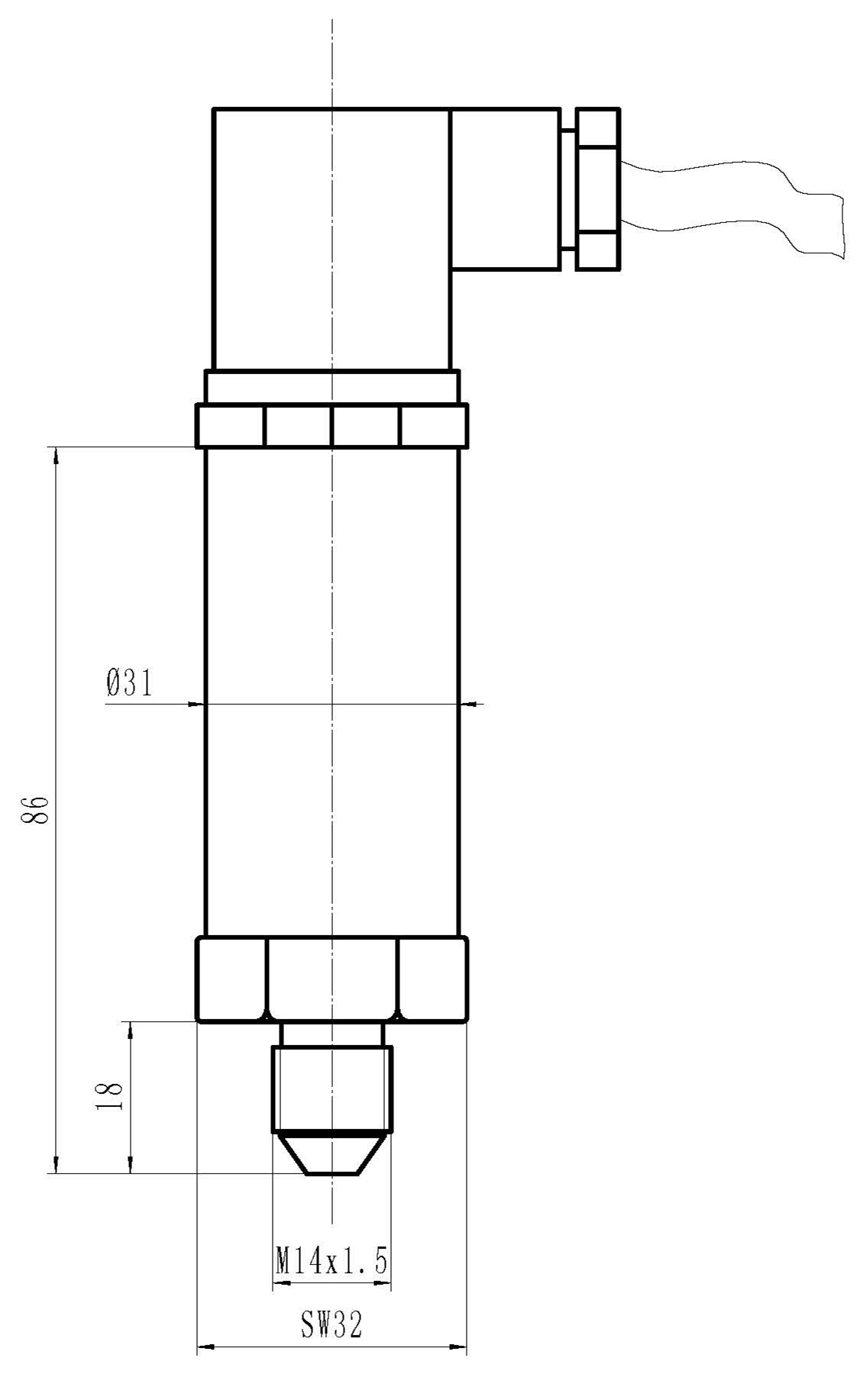

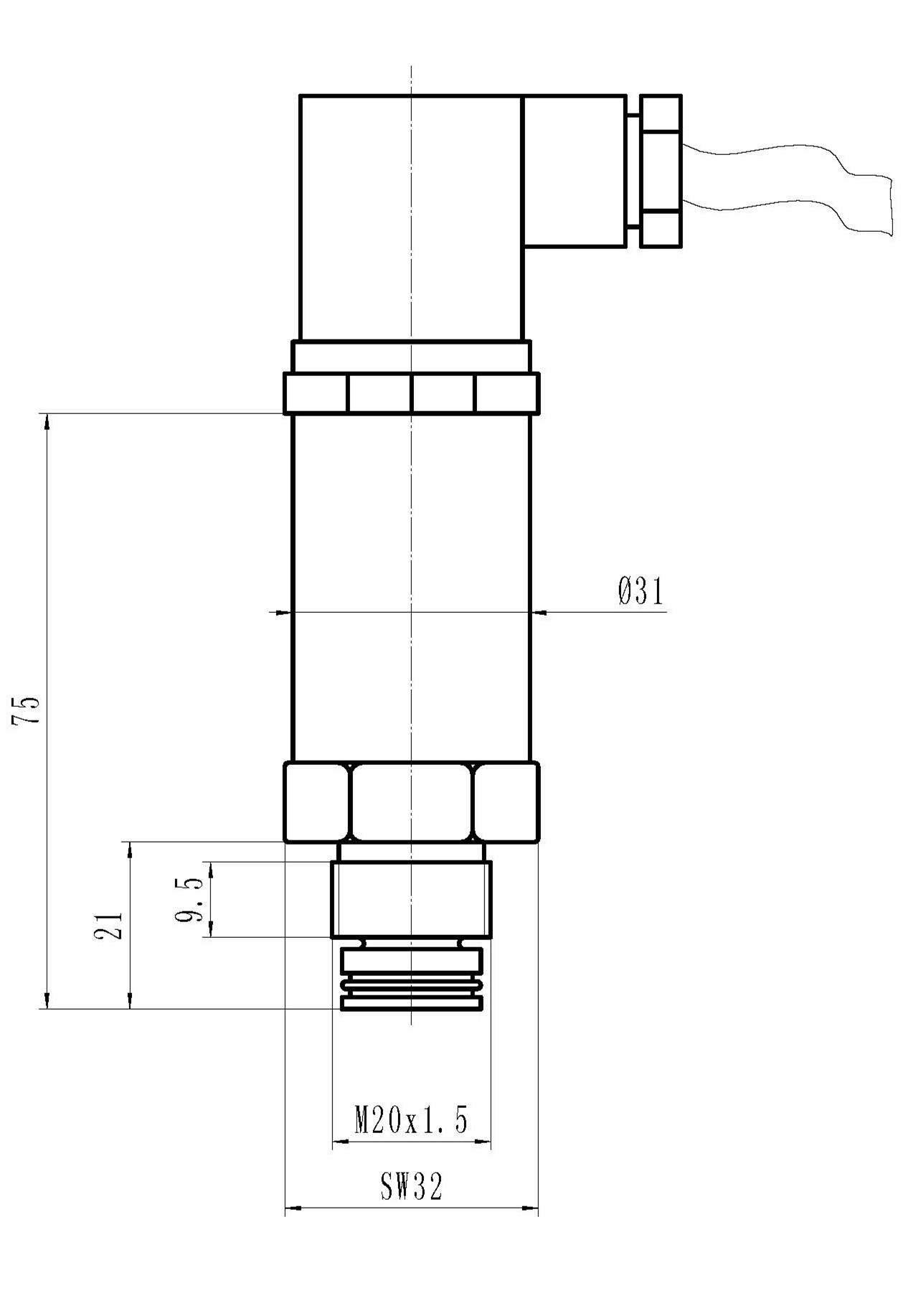

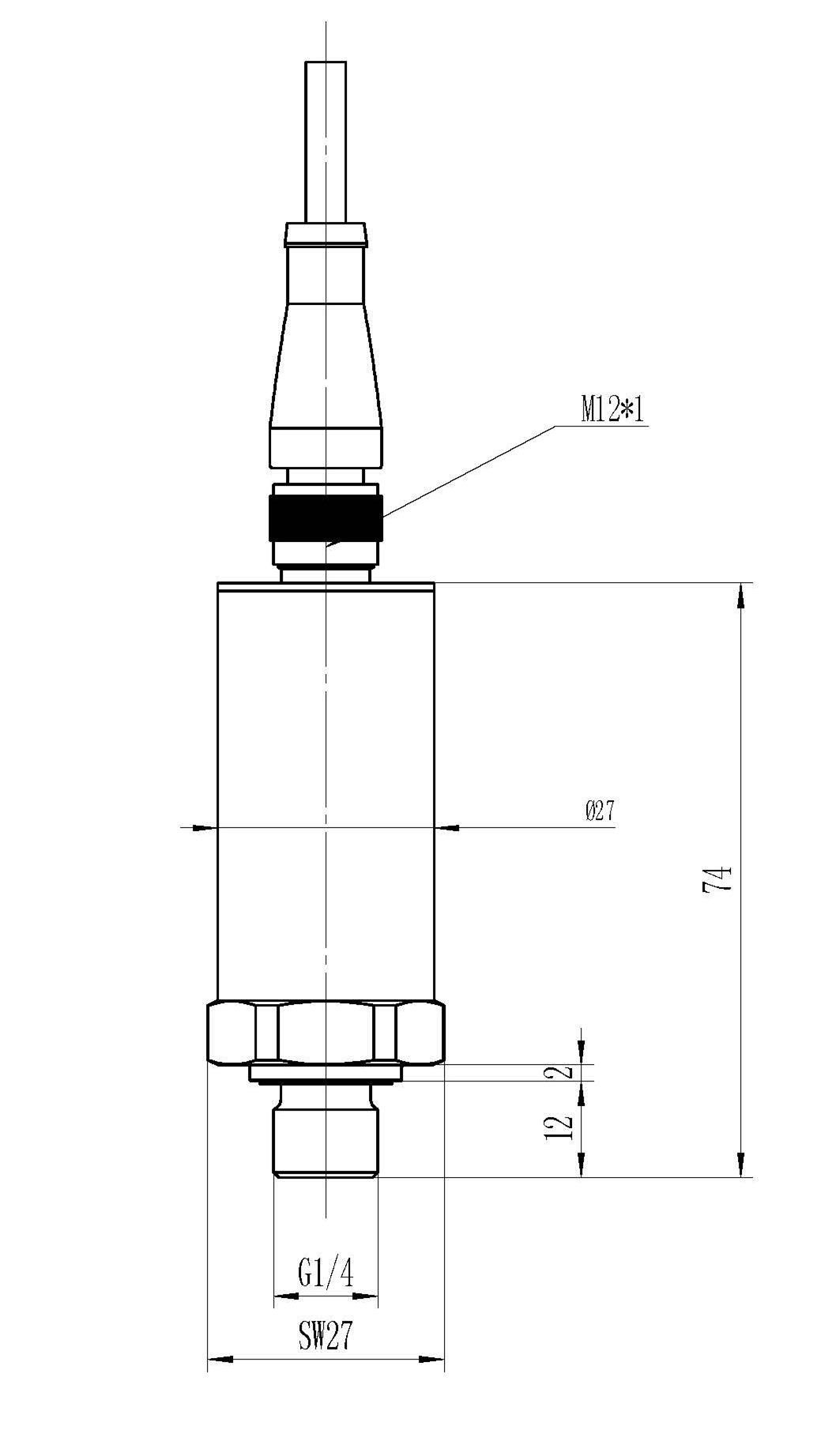

OUTLINE DIMENSIONS:

SPECIFICATION:

PARAMETER	VALUE		PARAMETER	VALUE
Rated capacity	1～250MPa		Operating temperature range	-40～+85℃
Recommended Excitation	24±12 VDC		Maximum safe overload	200% FS
Current consumption	<100 mA		Ultimate safe overload	300% FS
Dual signal output (choose one of three options)	Analog output	2.0±0.015mV/V	Material	alloy steel, stainless steel
	Analog output	2.85±0.015mV/V	Environment protection	IP67
	Wireless Network	ZigBee/LoRa/NB-IOT	Climate test	EN60068-2-30,DB55℃/100%
Combined error	0.5%FS		Vibration resistance	EN60068-2-6,5-500Hz,50g,10mm
Temperature effect on zero	0.3%FS/10℃		Shock resistance	EN60068-2-27(half sine) 50g,11ms,1000shocks; 1000g,1ms,50shocks
