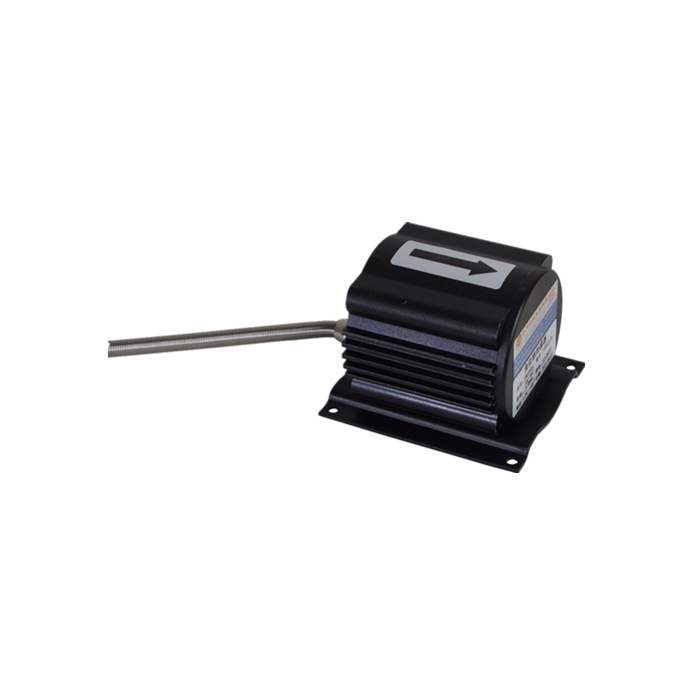

Oilwell angular displacement transducer (dynamometer) SMA36
Angular Displacement Transducer
Description
SPECIFICATION:
| PARAMETER | VALUE |
| Capacity | -50°～50° |
| Power supply | 12 to 24 VDC (24 VDC recommended) |
| Signal | 4～20 mA |
| Linearity | 1%F.S |
| Repeatability | ≤0.15%F.S |
| Hysteresis | ≤0.15%F.S |
| Output smoothness | ≤0.05% |
| Operating temperature | －40 ～ ＋85℃ |
| Insulation resistance | 2000 MΩ |
| Wiring mark | Two-wire system, no positive and negative |
| Protection | IP65 |
