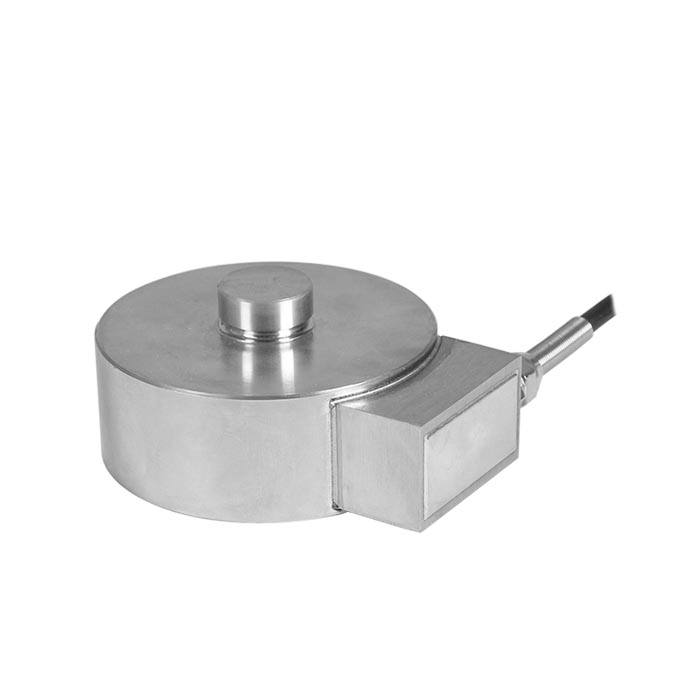

Low profile compression load cell GYCN
FEATURES:
◆Capacity: 2.5-20t
◆Fully welding seal, high protection
◆Low height, C3
APPLICATION:
◆Static hopper scale
◆Static industrial control
Description

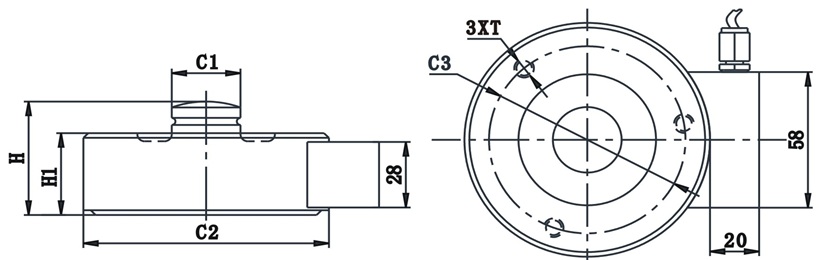

OUTLINE DIMENSIONS:
| Rated capacity | C1 | C2 | C3 | H | H1 | T |
| 2.5, 5, 10t | 22 | 82 | 65 | 44 | 32 | M6 depth 8 |
| 15, 20t | 28 | 100 | 80 | 48.5 | 35 | M8 depth 10 |
SPECIFICATION:
| PARAMETER | VALUE | PARAMETER | VALUE |
| Rated capacity: | 2.5-20t | Operating temperature range: | -30 ~ +70℃ |
| Rated output: | 2.0±0.01mv/v | Maximum safe overload: | 150% OF R.C |
| Combined error: | ±0.05% F.S | Ultimate safe overload: | 200% OF R.C |
| Non-repeatability: | ±0.03% F.S | Recommended Excitation: | 10 ~ 12V DC |
| Non-linearity: | ±0.05% F.S | Maximum Excitation: | 15V DC |
| Hysteresis error: | ±0.05% F.S | Environment protection: | IP68 |
| Zero balance: | ±1% F.S | Input impedance: | 750±10Ω |
| Creep error(30minutes): | ±0.03% F.S | Output impedance: | 702±5Ω |
| Temperature effect on zero: | ±0.02% F.S/10℃ | Insulation resistance at 50V DC: | ≥5000MΩ |
| Temperature effect on output: | ±0.02% F.S/10℃ | Material: | alloy steel, stainless steel |
| Compensated temperature range: | -10 ~ +40℃ | Cable length: | length 5m diameter 5mm |
