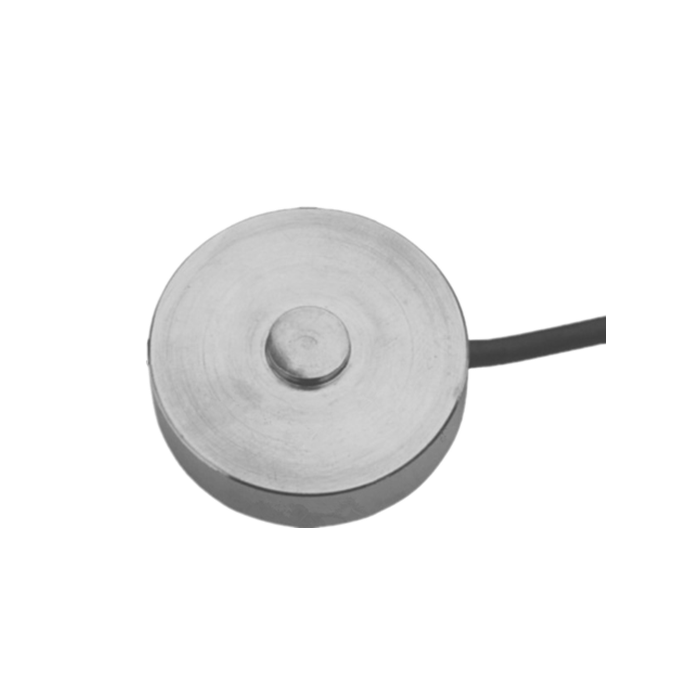

Low profile compression/load button load cell GKE
FEATURES:
◆Capacity: 200lb-10klb
◆Low height, small size
APPLICATION:
◆Narrow space testing
Description

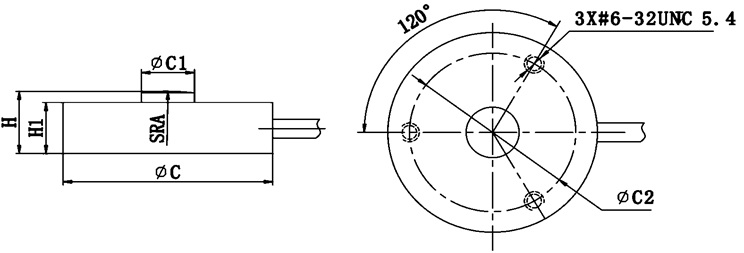

OUTLINE DIMENSIONS:
| Rated capacity | C | C1 | C2 | H | H1 | A |
| 200lb, 250lb, 500lb, 1klb | 32 | 8.1 | 25.4 | 10 | 8.2 | 35 |
| 3klb, 5klb, 10klb | 38 | 10 | 31.4 | 16 | 14 | 40 |
SPECIFICATION:
| PARAMETER | VALUE | PARAMETER | VALUE |
| Rated capacity: | 200lb-10klb | Operating temperature range: | -30 ~ +70℃ |
| Rated output: | 1.0~2.0mv/v | Maximum safe overload: | 120% F.S |
| Combined error: | ±0.5% F.S | Ultimate safe overload: | 150% F.S |
| Non-repeatability: | ±0.05% F.S | Recommended Excitation: | 10~12V DC |
| Non-linearity: | ±0.5% F.S(200lb-500lb) ±1% F.S(1klb-10klb) |
Maximum Excitation: | 15V DC |
| Hysteresis error: | ±0.5% F.S(200lb-500lb) ±1% F.S(1klb-10klb) |
Environment protection: | IP65 |
| Zero balance: | ±1% F.S | Input impedance: | 400±50Ω |
| Creep error(30minutes): | ±0.1% F.S | Output impedance: | 352±3Ω |
| Temperature effect on zero: | ±0.2% F.S/10℃ | Insulation resistance at 50V DC: | ≥2000MΩ |
| Temperature effect on output: | ±0.2% F.S/10℃ | Material: | stainless steel |
| Compensated temperature range: | -10 ~ +40℃ | Cable: | length 1.5m, diameter 3mm |
