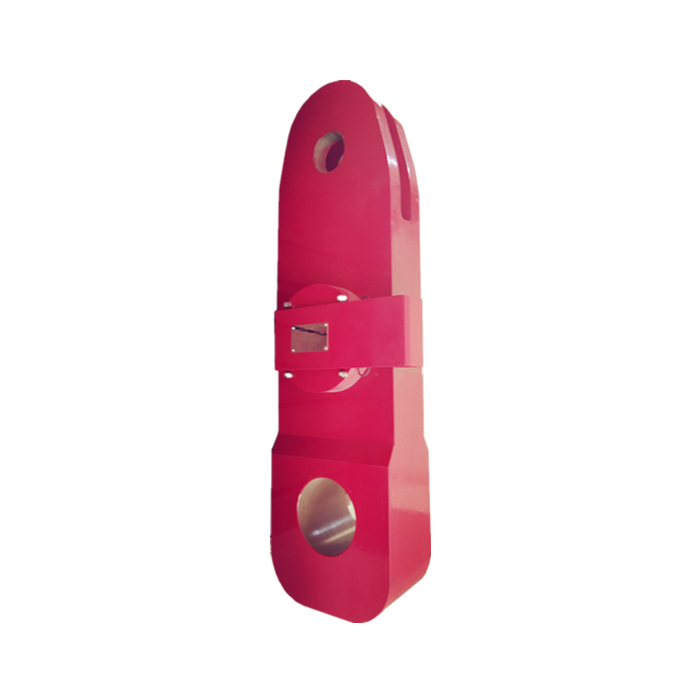

Force sensor/crane transducer G46
FEATURES:
◆Capacity: 5-1600t
◆Tension structure
APPLICATION:
◆Lifting equipment
◆Aerial work vehicle
◆Medium and large sized crane
Description

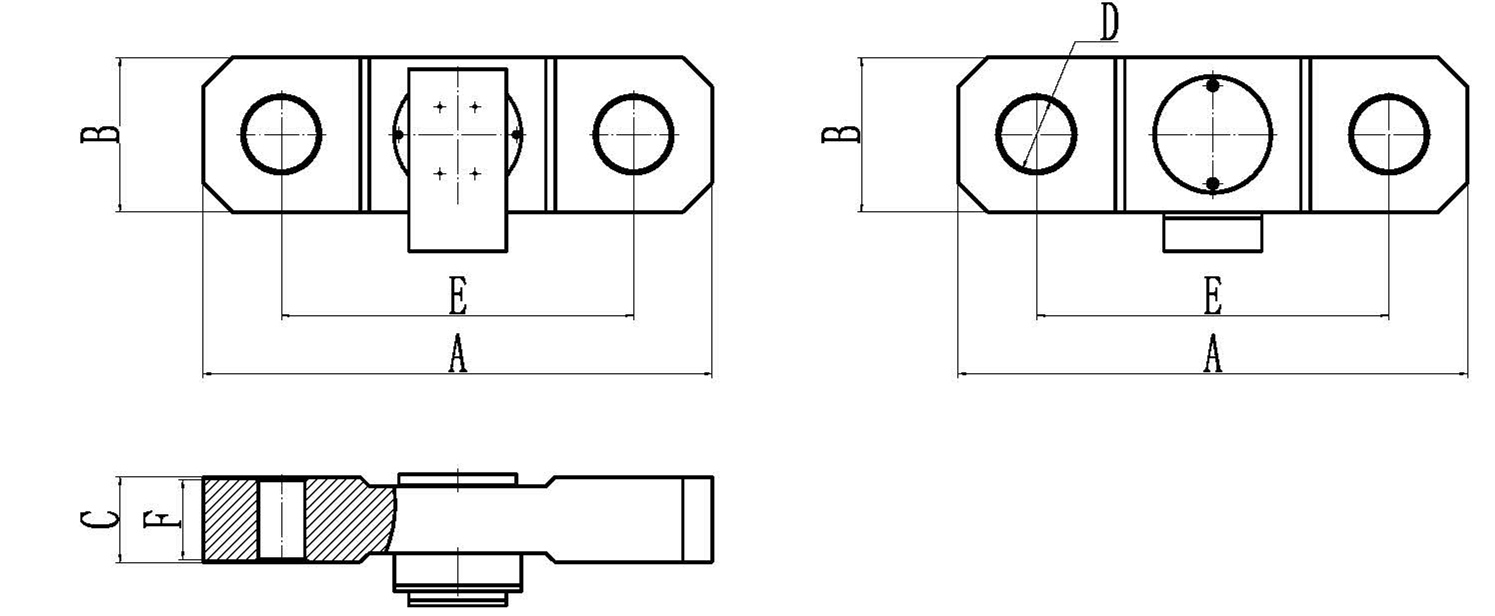

OUTLINE DIMENSIONS:
| Rated capacity | A | B | C | D | E | F |
| 30t | 470 | 128 | 45 | 62 | 340 | 41 |
| 60t | 520 | 158 | 87 | 75 | 360 | 83 |
| 80t | 672 | 218 | 85 | 90 | 452 | 81 |
| 120t | 740 | 208 | 110 | 110 | 500 | 106 |
| 150t | 740 | 208 | 110 | 110 | 500 | 106 |
| 200t | 1000 | 246 | 95 | 110 | 650 | 106 |
| 250t | 1000 | 246 | 95 | 110 | 650 | 106 |
| 250t | 870 | 246 | 135 | 120 | 600 | 131 |
| Others | customized | |||||
SPECIFICATION:

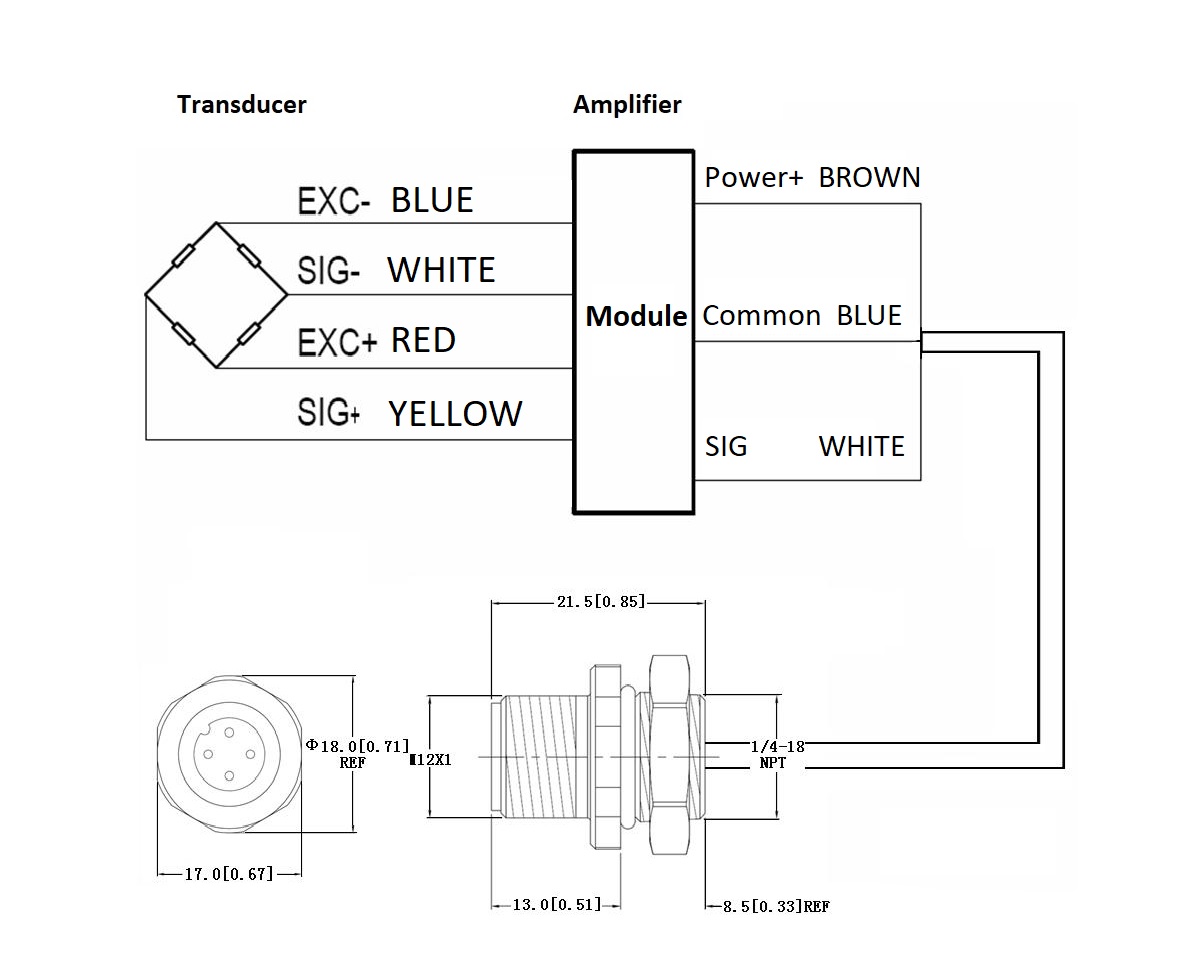

| PARAMETER | VALUE | PARAMETER | VALUE | |
| Rated capacity | 5～1600 t | Operating temperature range | -40～+85℃ | |
| Recommended Excitation | 24±12 VDC | Maximum safe overload | 200% FS | |
| Current consumption | <100 mA | Ultimate safe overload | 300% FS | |
| Dual signal output (choose one of three options) |
Analog output | 4～20mA | Material | alloy steel, stainless steel |
| CAN Bus | CAN open, CAN open Safety |
Environment protection | IP67 | |
| Wireless Network | ZigBee/LoRa/NB-IOT | Climate test | EN60068-2-30,DB55℃/100% | |
| Combined error | 0.3%FS | Vibration resistance | EN60068-2-6,5-500Hz,50g,10mm | |
| Temperature effect on zero | 0.1%FS/10℃ | Shock resistance | EN60068-2-27(half sine) 50g,11ms,1000shocks; 1000g,1ms,50shocks |
|
