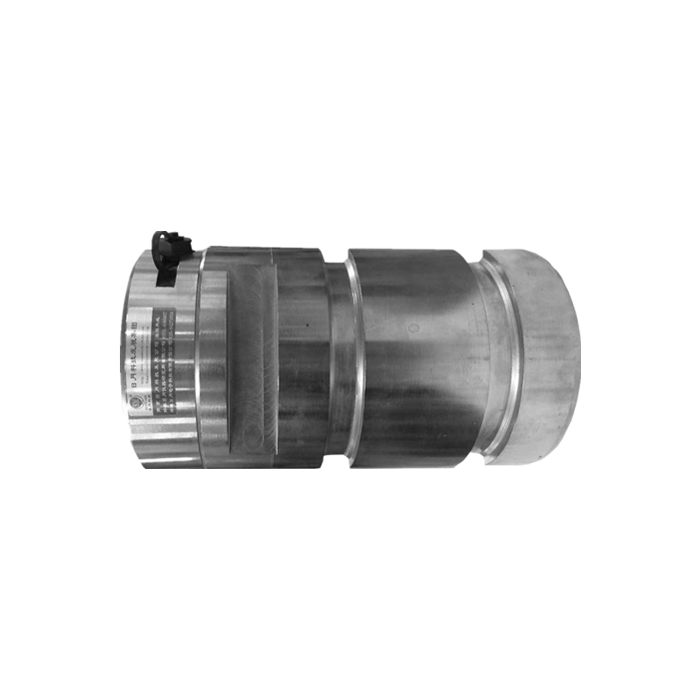

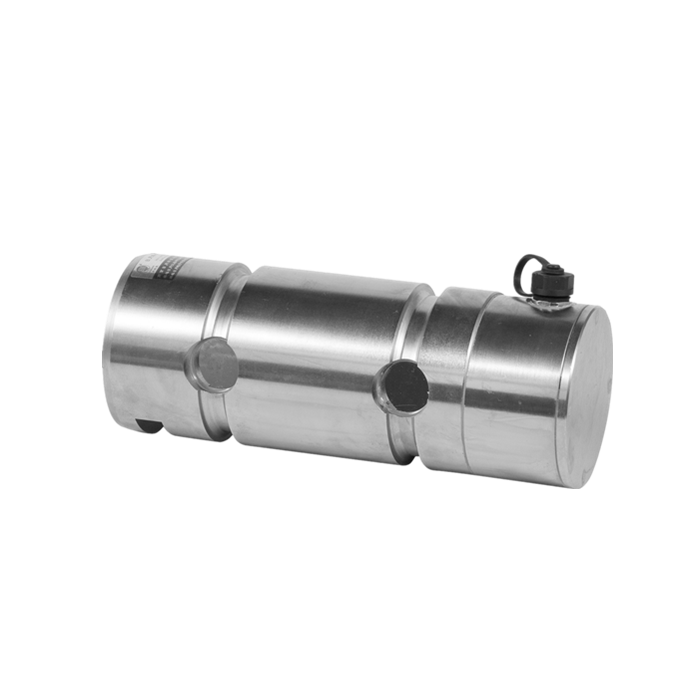

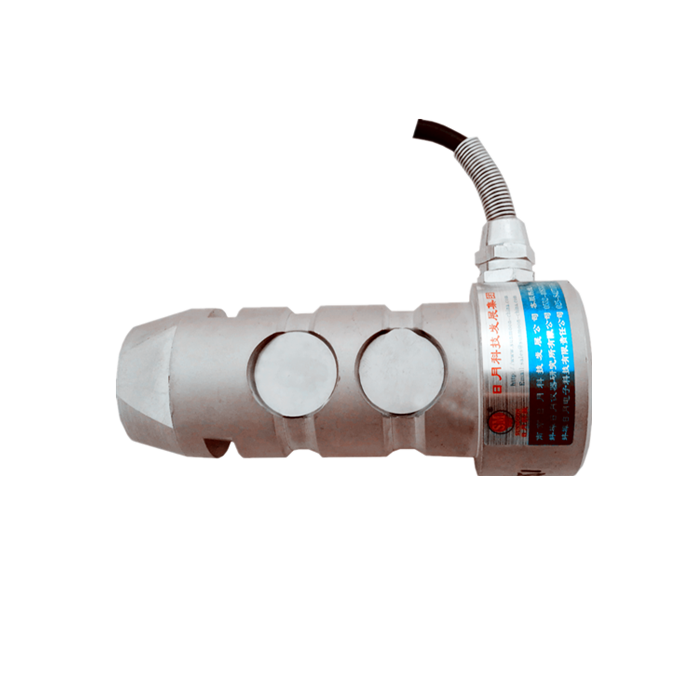

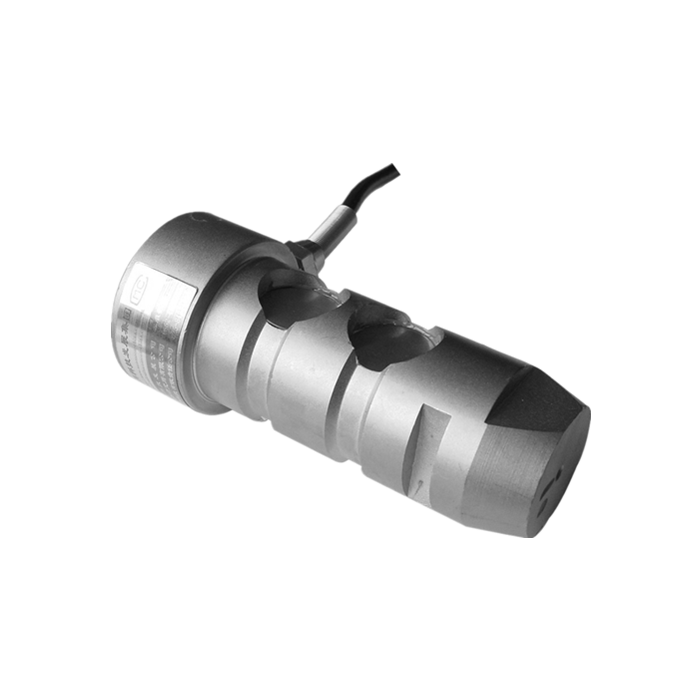

Force sensing load pin/load cell G23
FEATURES:
◆Capacity: 1～1000 t
APPLICATION:
◆Tower crane
◆Port machinery
◆Chain Hoist
◆Open and close equipment
Description

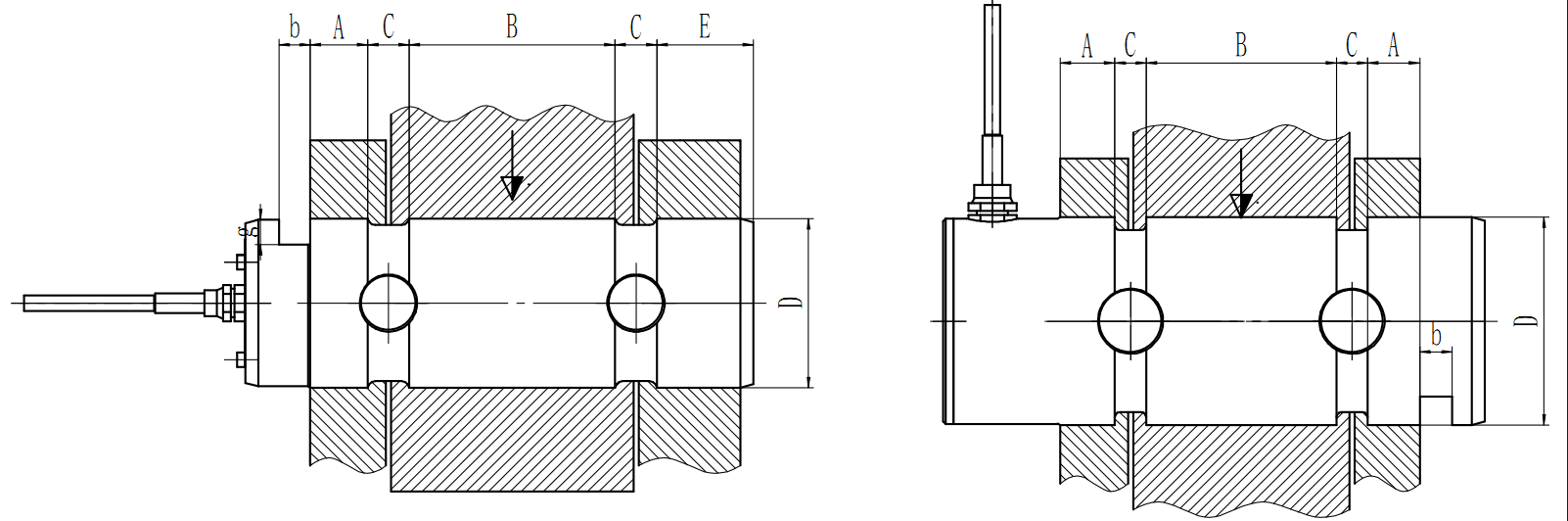

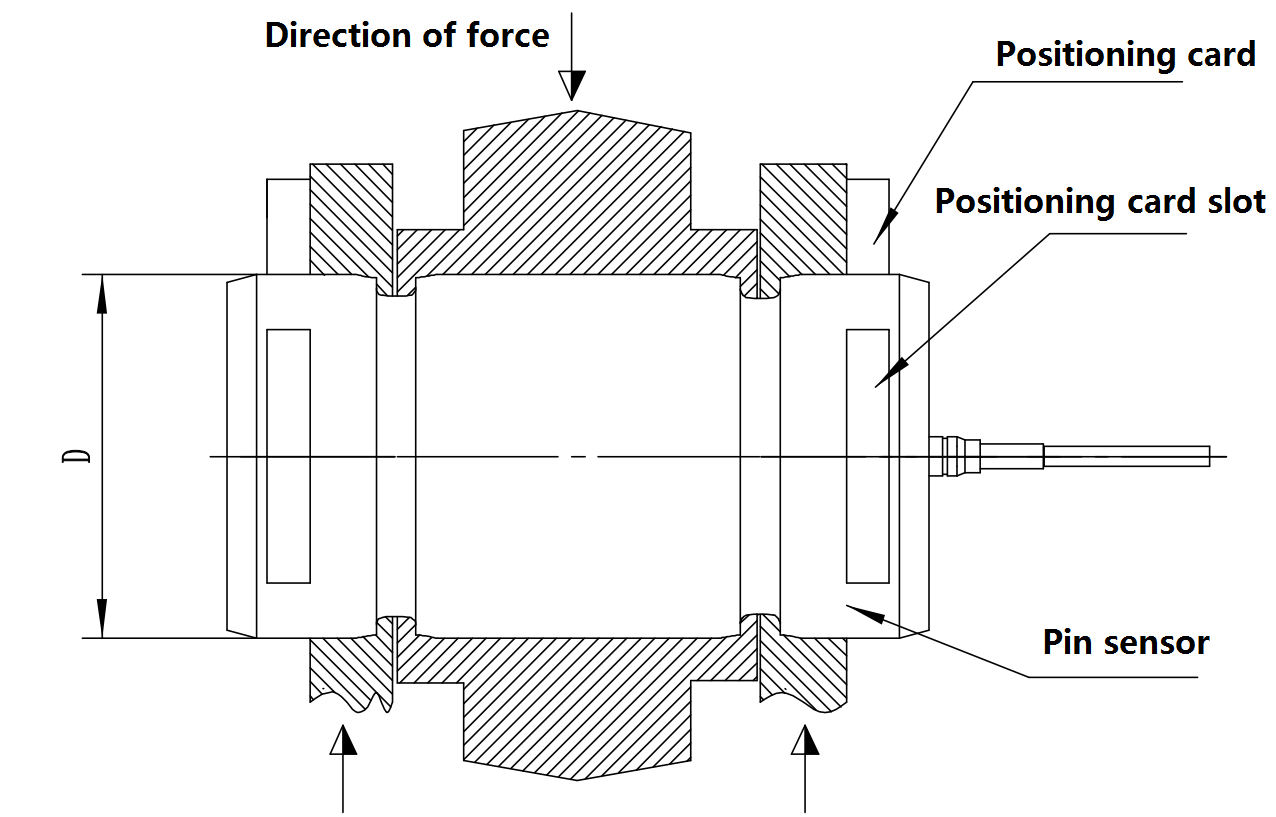

OUTLINE DIMENSIONS:
| Rated capacity | A | B | C | D | E | b | g |
| 1t | 13 | 20 | 6 | Φ40 | 42 | 7 | 5 |
| 3t | 13 | 20 | 6 | Φ40 | 42 | 7 | 5 |
| 20t | 22 | 79 | 16 | Φ65 | 47 | 12 | 10 |
| 40t | 28 | 100 | 16 | Φ80 | 55 | 12 | 10 |
| 60t | 20 | 73 | 12 | Φ80 | 45 | 12.5 | 11 |
| 80t | 27.5 | 103 | 16 | Φ90 | 52.5 | 10 | 15 |
| 120t | 20 | 98 | 12 | Φ110 | 45 | 13 | 15.5 |
| 200t | 22.5 | 55 | 15 | Φ120 | 27.5 | 22 | 20 |
| Others | customized | ||||||
SPECIFICATION:
| PARAMETER | VALUE | PARAMETER | VALUE | |
| Rated capacity | 1～1600 t | Operating temperature range | -40～+85℃ | |
| Recommended Excitation | 24±12 VDC | Maximum safe overload | 200% FS | |
| Current consumption | <100 mA | Ultimate safe overload | 300% FS | |
| Dual signal output (choose one of three options) |
Analog output | 4～20mA | Material | alloy steel, stainless steel |
| CAN Bus | CAN open, CAN open Safety |
Environment protection | IP67 | |
| Wireless Network | ZigBee/LoRa/NB-IOT | Climate test | EN60068-2-30,DB55℃/100% | |
| Combined error | 0.3%FS | Vibration resistance | EN60068-2-6,5-500Hz,50g,10mm | |
| Temperature effect on zero | 0.1%FS/10℃ | Shock resistance | EN60068-2-27(half sine) 50g,11ms,1000shocks; 1000g,1ms,50shocks |
|
