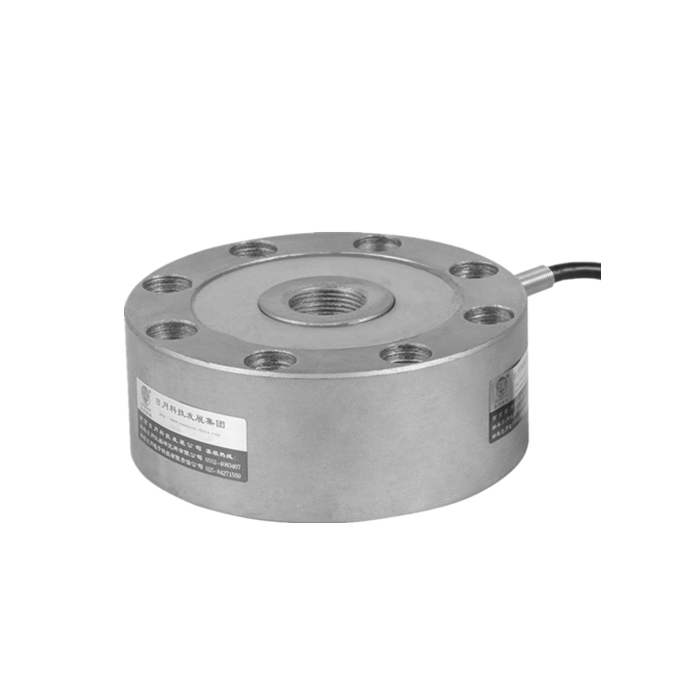

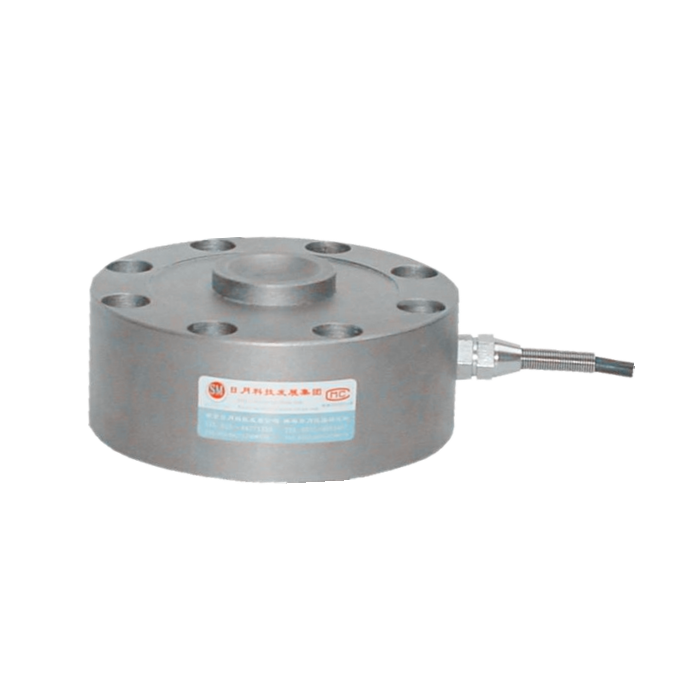

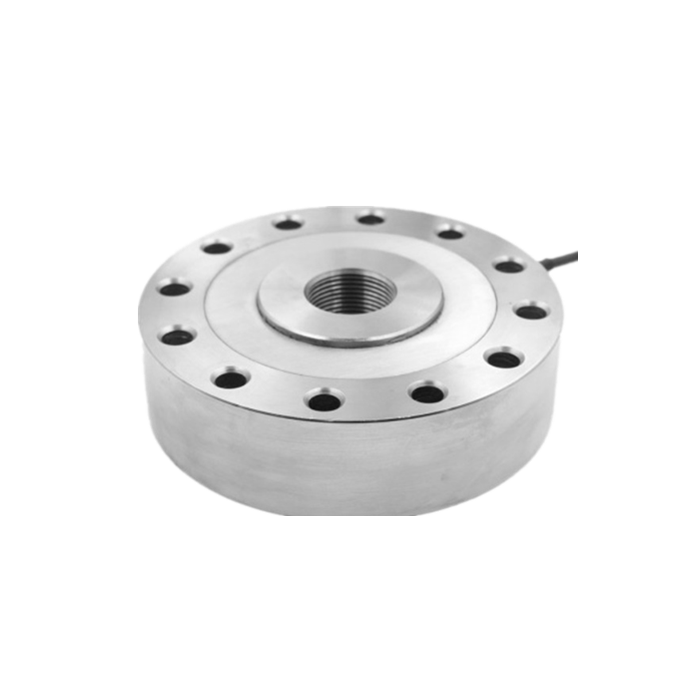

Fatigue,universal low profile/pancake load cell GLP
FEATURES:
◆Capacity:2.5, 5, 10, 25, 50, 60, 100klb
◆Low height
◆High accuracy
APPLICATION:
◆Testing machine
◆Warehouse scale
Description

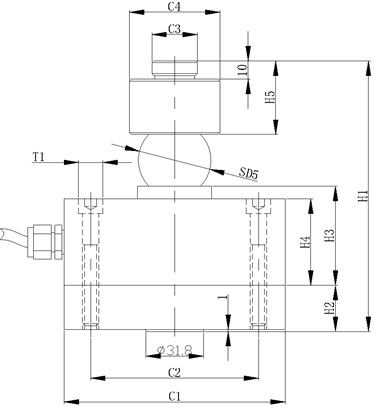

OUTLINE DIMENSIONS:
| Rated capacity | C1 | C2 | C3 | C4 | H1 | H2 | H3 | H4 | H5 | SD5 | T1 |
| 2.5,5,10klb | 104.6 | 86 | 21.5 | 37 | 100 | 20.2 | 44.3 | 34.8 | 25 | 19.5 | 8xM6 |
| 25,50klb | 122 | 101.7 | 25 | 50 | 147 | 25 | 54 | 47 | 40 | 40 | 8xM8 |
| 60klb | 122 | 101.7 | 25 | 50 | 145.4 | 25 | 54 | 47 | 40 | 40 | 8xM8 |
| 100klb | 138 | 112 | 25 | 50 | 155 | 30 | 57 | 51 | 40 | 40 | 8xM10 |
SPECIFICATION:
| PARAMETER | VALUE | PARAMETER | VALUE |
| Rated capacity: | 2.5, 5, 10, 25, 50, 60, 100klb | Maximum safe overload: | 150% F.S |
| Rated output: | 4.0±0.006mv/v | Ultimate safe overload: | 200% F.S |
| Combined error: | ±0.05% F.S ±0.1% F.S(100klb) |
Recommended Excitation: | 10~12V DC |
| Non-repeatability: | ±0.03% F.S | Maximum Excitation: | 15V DC |
| Zero balance: | ±1% F.S | Environment protection: | IP67 |
| Creep error(30minutes): | ±0.03% F.S | Input impedance: | 400±20Ω |
| Temperature effect on zero: | ±0.02% F.S/10℃ | Output impedance: | 352±3Ω |
| Temperature effect on output: | ±0.02% F.S/10℃ | Insulation resistance at 50V DC: | ≥5000MΩ |
| Compensated temperature range: | -10~+40℃ | Material: | alloy steel |
| Operating temperature range: | -30~ +70℃ | Cable: | length 12m, diameter 6mm |
