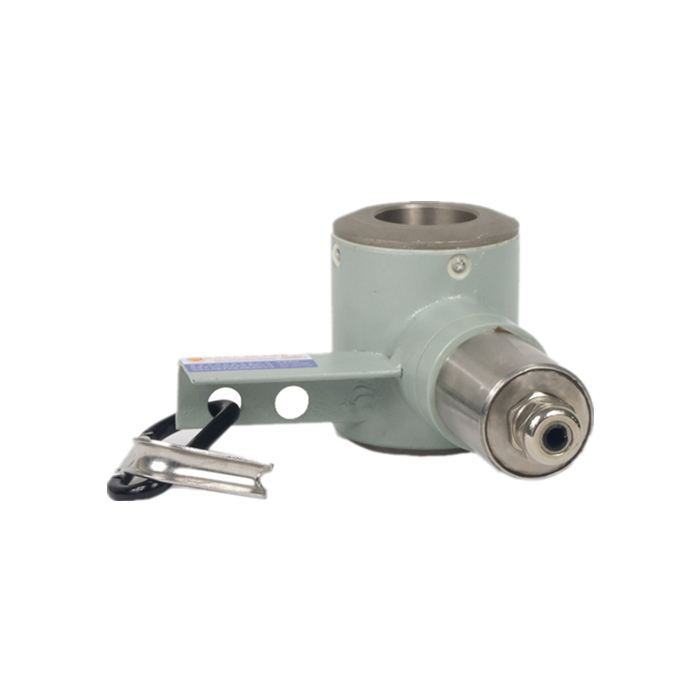

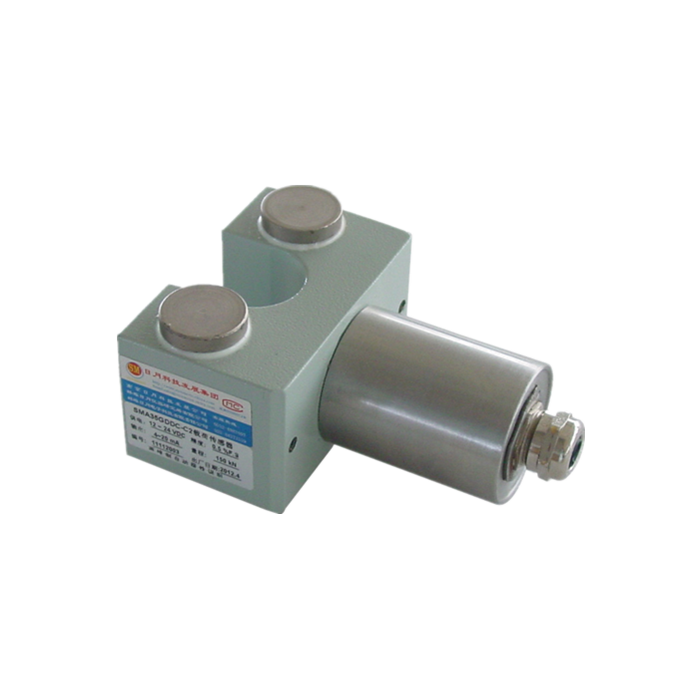

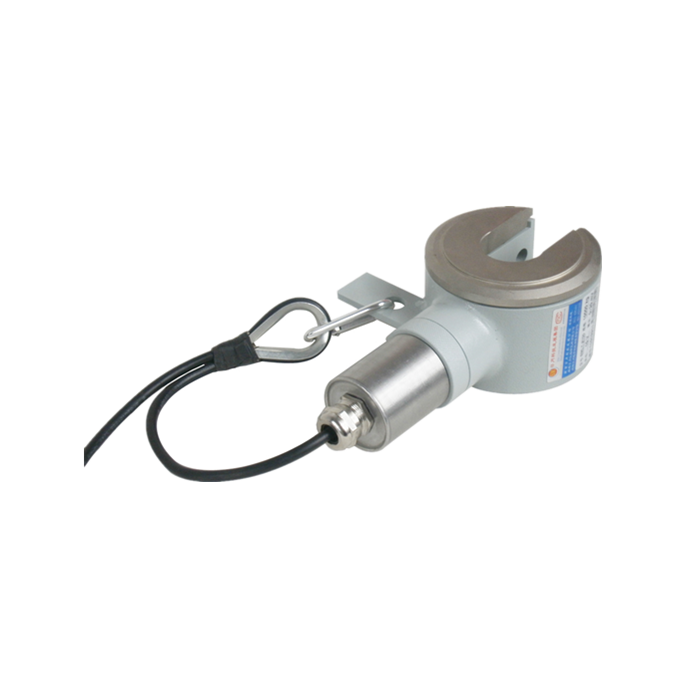

Dynamometer load transducer SMA4DC/SMA35GDDC
Special designed for load testing in oilwell.
Description
SPECIFICATION:
| PARAMETER | VALUE |
| Output | 4～20 mA |
| Power supply | 24±12 VDC |
| Capacity | 80, 120, 150 kN (customized) |
| Insulation resistance | ≥5000 MΩ |
| Operating temperature | －40～＋85℃ |
| Accuracy | 0.3, 0.5% F.S |
| Maximum safe overload | 200% F.S |
| Environment protection | IP65 |
| O or U shape size(mm) | φ35,φ40 (customized) |
