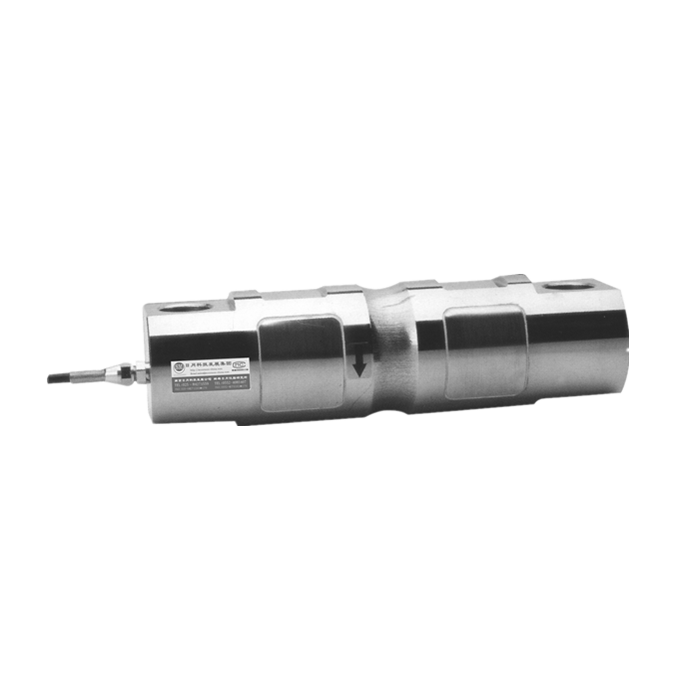

Double ended shear beam load cell GDC

Home Load Cells Double ended shear beam load cell GDC

Double ended shear beam load cell GDC

FEATURES:

◆Capacity: 5-100klb

APPLICATION:

◆Hopper scale

Load Cells2019-10-11g90

Description

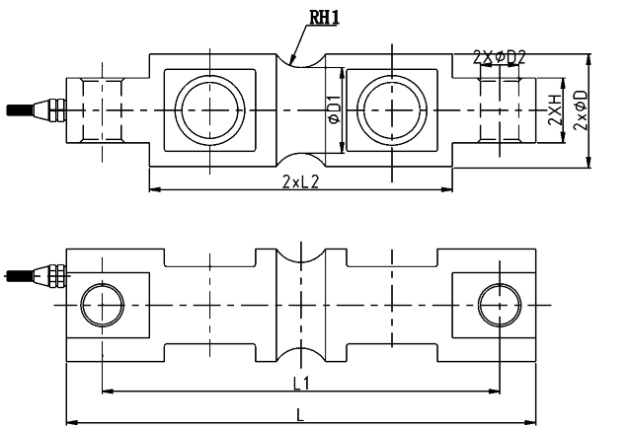

OUTLINE DIMENSIONS:

Rated capacity L L1 L2 D D1 D2 H H1
5-10klb 206.2 174.6 133.1 43.2 37.6 16.8 28.5 12.7
20-25klb 206.2 174.6 133.1 50 37.6 16.8 28.5 12.7
30-75klb 260 216 164 76 69.3 27 60 25.4
100klb 285.8 241.3 190 88.9 82.3 27 63.5 38.1

SPECIFICATION:

PARAMETER VALUE PARAMETER VALUE
Rated capacity: 5-100klb Operating temperature range: -30 ~ +70℃
Rated output: 3.0±0.003mv/v Maximum safe overload: 150% F.S
Combined error: ±0.05% F.S Ultimate safe overload: 200% F.S
Non-repeatability: ±0.02% F.S Recommended Excitation: 10 ~ 12V DC
Non-linearity: ±0.05% F.S Maximum Excitation: 15V DC
Hysteresis error: ±0.05% F.S Environment protection: IP68
Zero balance: ±1% F.S Input impedance: 750±10Ω
Creep error(30minutes): ±0.02% F.S Output impedance: 703±5Ω
Temperature effect on zero: ±0.02% F.S Insulation resistance at 50V DC: ≥5000MΩ
Temperature effect on output: ±0.02% F.S Material: alloy steel, stainless steel
Compensated temperature range: -10 ~ +40℃ Cable : length 8m, diameter 5mm(5-10klb)
length 12m, diameter 6mm(20-75klb)
length 16m diameter 6mm(100klb)
