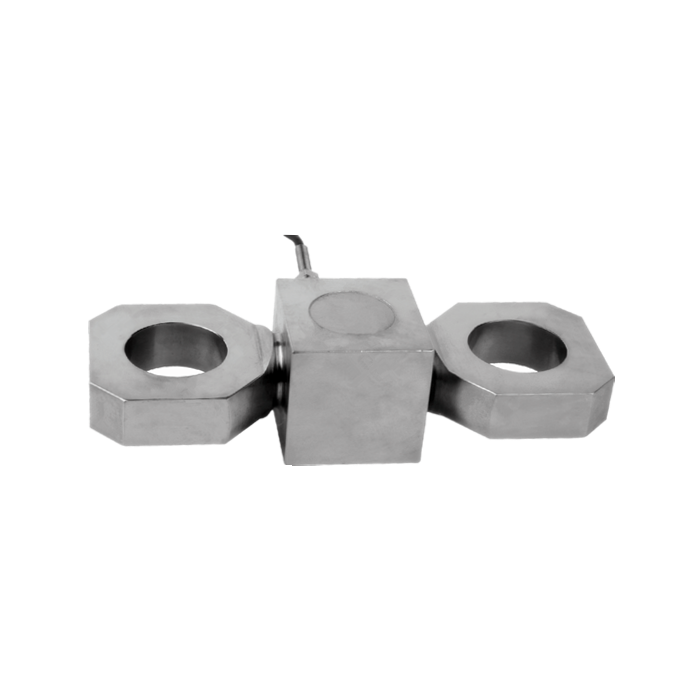

Customized tension load cell GGNB
FEATURES:
◆Capacity:2-50t
APPLICATION:
◆Crane scale
◆Hopper scale
◆Packing scale
Description

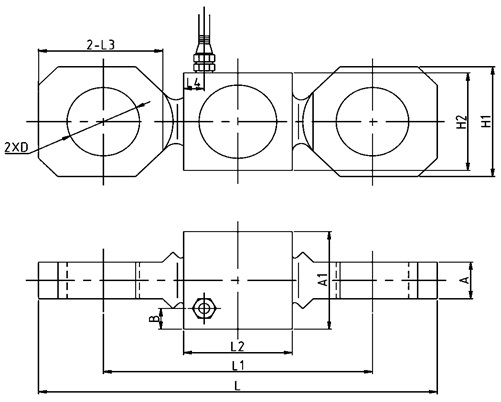

OUTLINE DIMENSIONS:
| Rated capacity | L | L1 | L2 | L3 | L4 | H1 | H2 | A | A1 | B | D |
| 2t，3t | 154 | 104 | 42 | 48 | 8 | 50 | 40 | 15 | 40 | 8.5 | Φ32 |
| 5t | 211 | 141 | 63 | 62 | 16.8 | 68 | 58 | 20 | 55 | 8.5 | Φ35 |
| 10t | 241 | 161 | 64 | 78 | 17.3 | 85 | 68 | 25 | 62 | 8.75 | Φ47 |
| 15t，20t | 310 | 202 | 80 | 102 | 20 | 108 | 80 | 35 | 70 | 10 | Φ55 |
| 30t | 351 | 227 | 85 | 118 | 23 | 118 | 85 | 40 | 75 | 10 | Φ62 |
| 50t | 351 | 227 | 85 | 118 | 23 | 118 | 85 | 60 | 80 | 10 | Φ68 |
SPECIFICATION:
| PARAMETER | VALUE | PARAMETER | VALUE |
| Rated capacity: | 2-50t | Operating temperature range: | -30 ~ +70℃ |
| Rated output: | 1.8±0.005mv/v | Maximum safe overload: | 150% F.S |
| Combined error: | ±0.05% F.S | Ultimate safe overload: | 200% F.S |
| Non-repeatability: | ±0.03% F.S | Recommended Excitation: | 10 ~ 12V DC |
| Non-linearity: | ±0.05% F.S | Maximum Excitation: | 15V DC |
| Hysteresis error: | ±0.05% F.S | Environment protection: | IP67 |
| Zero balance: | ±1% F.S | Input impedance: | 400±20Ω |
| Creep error(30minutes): | ±0.03% F.S | Output impedance: | 352±3Ω |
| Temperature effect on zero: | ±0.02% F.S/10℃ | Insulation resistance at 50V DC: | ≥5000MΩ |
| Temperature effect on output: | ±0.02% F.S/10℃ | Material: | alloy steel |
| Compensated temperature range: | -10 ~+40℃ | Cable : | length 2m(2-5t) 16m(10-15t) 20m(20-30t) diameter 5mm |
