Compression canister/column load cell GCP
FEATURES:
◆Capacity: 40-300t
◆Forcing with double end
◆Flange connected
APPLICATION:
◆Tesnsion testing situation, testing machine
Description

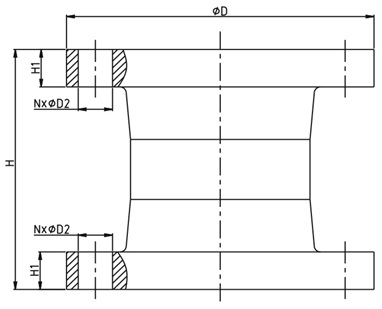

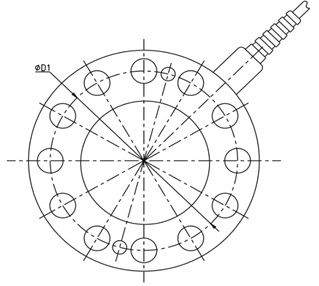

OUTLINE DIMENSIONS:
| Rated capacity | H | H1 | D | D1 | NxФD2 |
| 40t-60t | 160 | 25 | 197 | 160 | 12×∅22 |
| 100t | 230 | 40 | 240 | 200 | 12×∅26 |
| 150t-200t | 326 | 57 | 305 | 250 | 12×∅32 |
| 300t | 358 | 69 | 415 | 360 | 18×∅33 |
SPECIFICATION:
| PARAMETER | VALUE | PARAMETER | VALUE |
| Rated capacity: | 40-300t | Operating temperature range: | -30 ~ +70℃ |
| Rated output: | 2.0±0.01mv/v | Maximum safe overload: | 150% F.S |
| Combined error: | ±0.3% F.S | Ultimate safe overload: | 200% F.S |
| Non-repeatability: | ±0.05% F.S | Recommended Excitation: | 10 ~ 12V DC |
| Non-linearity: | ±0.3% F.S | Maximum Excitation: | 15V DC |
| Hysteresis error: | ±0.3% F.S | Environment protection: | IP67 |
| Zero balance: | ±1% F.S | Input impedance: | 750±10Ω |
| Creep error(30minutes): | ±0.05% F.S | Output impedance: | 702±5Ω |
| Temperature effect on zero: | ±0.03% F.S/10℃ | Insulation resistance at 50V DC: | ≥5000MΩ |
| Temperature effect on output: | ±0.03% F.S/10℃ | Material: | alloy steel, stainless steel |
| Compensated temperature range: | -10 ~ +40℃ | Cable length: | length 14m(40-100t) 20m(150-300t) diameter 8mm |
