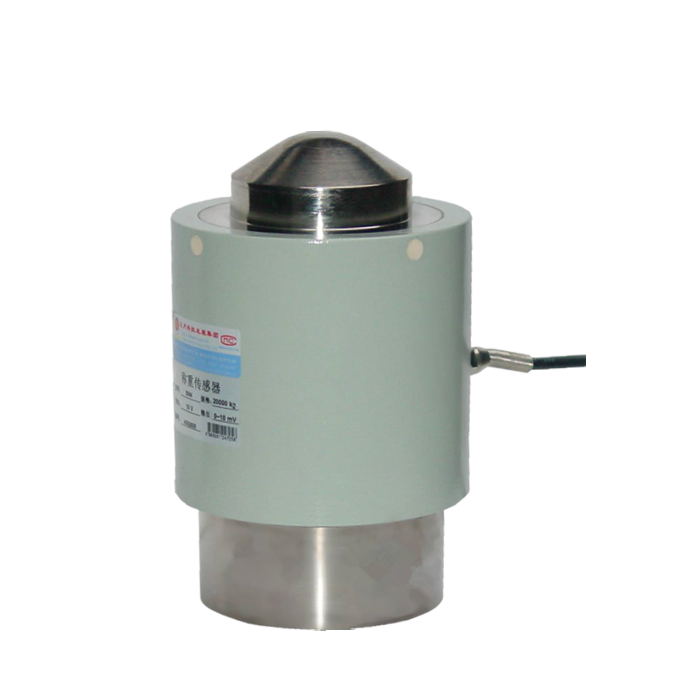

Compression canister/column load cell GCKB
FEATURES:
◆Capacity: 2-50t
◆Low height
◆High performance, C3
APPLICATION:
◆Hopper scale
◆Filling scale
Description

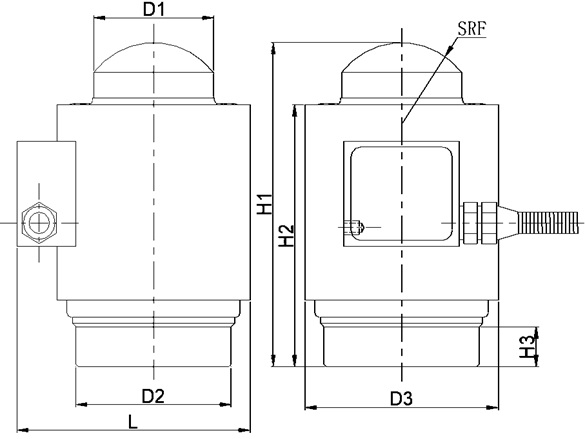

OUTLINE DIMENSIONS:
| Rated capacity | D1 | D2 | D3 | F | H1 | H2 | H3 | L |
| 2,3,5t | Ф24 | Ф70 | Ф88 | 15 | 138.5 | 120 | 17 | 107 |
| 10,15,20,25,30,40,50t | Ф54 | Ф70 | Ф88 | 35 | 138.5 | 120 | 17 | 107 |
SPECIFICATION:
| PARAMETER | VALUE | PARAMETER | VALUE |
| Rated capacity: | 2-50t | Operating temperature range: | -30 ~ +70℃ |
| Rated output: | 1.0±0.002mv/v | Maximum safe overload: | 150% F.S |
| Combined error: | ±0.05% F.S | Ultimate safe overload: | 200% F.S |
| Non-repeatability: | ±0.02% F.S | Recommended Excitation: | 10 ~ 12V DC |
| Non-linearity: | ±0.05% F.S | Maximum Excitation: | 15V DC |
| Hysteresis error: | ±0.05% F.S | Environment protection: | IP67 |
| Zero balance: | ±1% F.S | Input impedance: | 650±10 |
| Creep error(30minutes): | ±0.02% F.S | Output impedance: | 610±3Ω |
| Temperature effect on zero: | ±0.02% F.S/10℃ | Insulation resistance at 50V DC: | ≥5000MΩ |
| Temperature effect on output: | ±0.02% F.S/10℃ | Material: | alloy steel, stainless steel |
| Compensated temperature range: | -10 ~ +40℃ | Cable length: | length 14m diameter 6mm |
