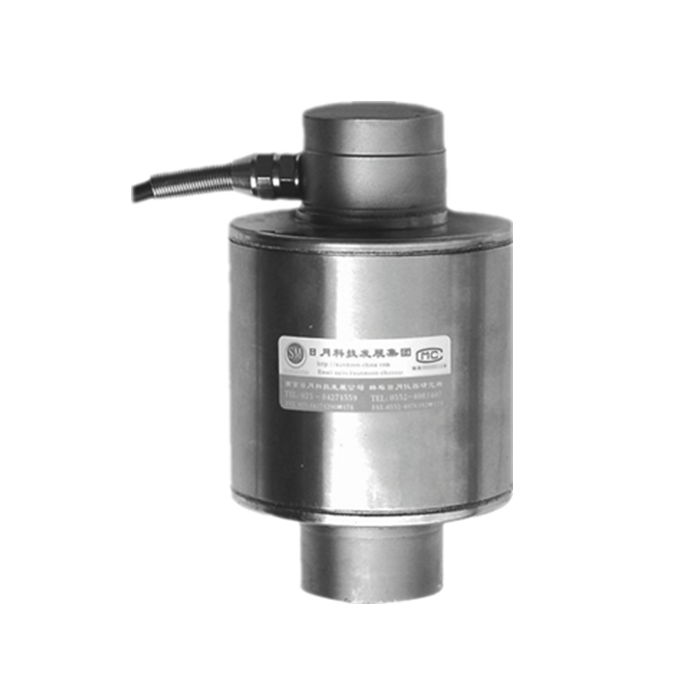

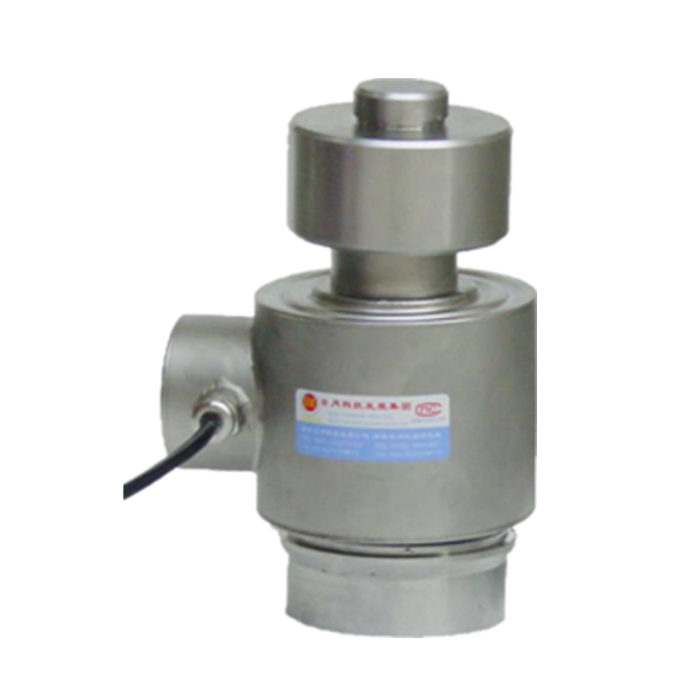

Compression canister/column load cell GCF
FEATURES:
◆Capacity: 10-50t
◆High sealing performance
◆Double rocker column
APPLICATION:
◆Truck scale
◆Hopper scale
◆Axle-load scale
◆Railway scale
Description

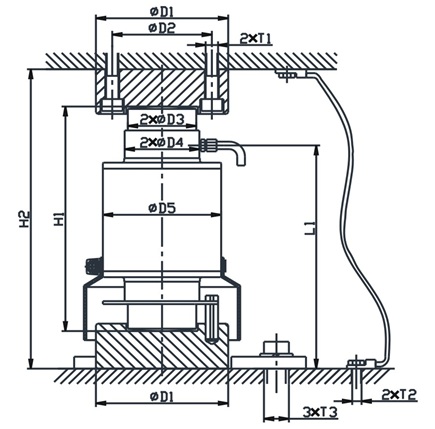

OUTLINE DIMENSIONS:
| Rated capacity | D1 | D2 | D3 | D4 | D5 | H1 | H2 | L1 | T1 | T2 | T3 |
| 10,15,20,25, 30,40,50t |
85 | 64 | 44 | 48 | 76 | 150 | 200 | 149 | M8 | M8 | M16 |
SPECIFICATION:
| PARAMETER | VALUE | PARAMETER | VALUE |
| Rated capacity: | 10-50t | Operating temperature range: | -30 ~ +70℃ |
| Rated output: | 2.0±0.002mv/v | Maximum safe overload: | 150% F.S |
| Accuracy class: | C3 | Ultimate safe overload: | 200% F.S |
| Non-repeatability: | ±0.02% F.S | Recommended Excitation: | 10 ~ 12V DC |
| Non-linearity: | ±0.03% F.S | Maximum Excitation: | 15V DC |
| Hysteresis error: | ±0.03% F.S | Environment protection: | IP68 |
| Zero balance: | ±1% F.S | Input impedance: | 400±20Ω(GCF) 700±20Ω(GCFY) |
| Creep error(30minutes): | ±0.02% F.S | Output impedance: | 352±3Ω(GCF) 703±5Ω(GCFY) |
| Temperature effect on zero: | ±0.02% F.S/10℃ | Insulation resistance at 50V DC: | ≥5000MΩ |
| Temperature effect on output: | ±0.02% F.S/10℃ | Material: | alloy steel, stainless steel |
| Compensated temperature range: | -10 ~ +40℃ | Cable length: | length 8m(10t),10m(15t), 12m(20-25t),14m(30t) 16m(40-50t); diameter φ5mm |
