Bellow type/ bending beam load cell GX
FEATURES:
◆Capacity: 5-500kg
◆C3
APPLICATION:
◆Belt scale
◆Hopper scale
Description

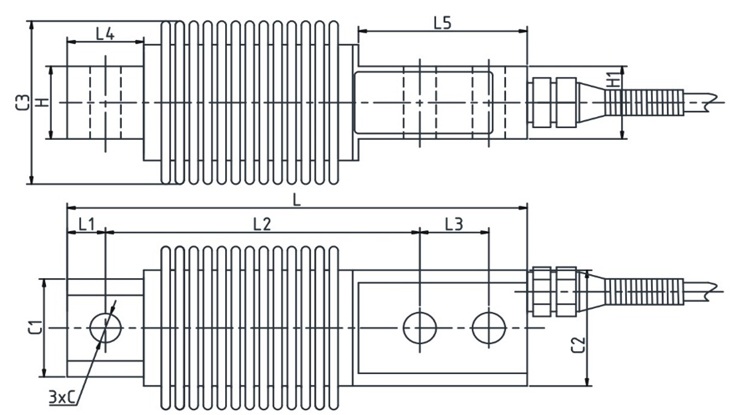

OUTLINE DIMENSIONS:
| Rated capacity | L | L1 | L2 | L3 | L4 | L5 | H | H1 | C | C1 | C2 | C3 |
| 5~250kg | 120 | 10 | 82 | 18 | 20 | 44 | 20 | 20 | Φ8.2 | Φ25.5 | Φ32 | Φ45 |
| 300~500kg | 120 | 10 | 82 | 18 | 20 | 44 | 20 | 20 | Φ10.2 | Φ25.5 | Φ32 | Φ45 |
SPECIFICATION:
| PARAMETER | VALUE | PARAMETER | VALUE |
| Rated capacity: | 5-500kg | Operating temperature range: | -30 ~ +70℃ |
| Rated output: | 2.0±0.002mv/v | Maximum safe overload: | 150% F.S |
| Accuracy class: | C3 | Ultimate safe overload: | 200% F.S |
| Non-repeatability: | ±0.02% F.S | Recommended Excitation: | 10 ~ 12V DC |
| Non-linearity: | ±0.02% F.S | Maximum Excitation: | 15V DC |
| Hysteresis error: | ±0.02% F.S | Environment protection: | IP68 |
| Zero balance: | ±1% F.S | Input impedance: | 400±20Ω |
| Creep error(30minutes): | ±0.015% F.S | Output impedance: | 352±3Ω |
| Temperature effect on zero: | ±0.015% F.S/10℃ | Insulation resistance at 50V DC: | ≥5000MΩ |
| Temperature effect on output: | ±0.015% F.S/10℃ | Material: | alloy steel, stainless steel |
| Compensated temperature range: | -10 ~ +40℃ | Cable : | length3m, diameter 5mm |
