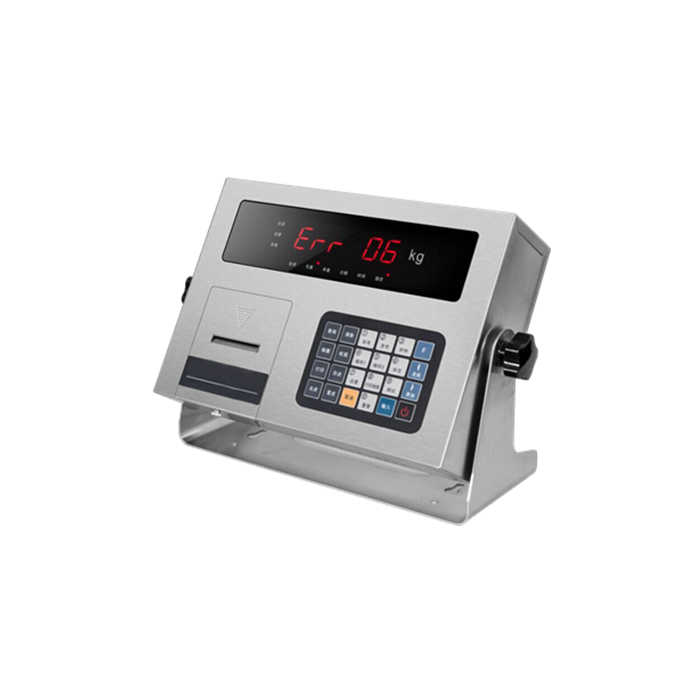

Analog weighing indicator, instrument G-X7/G-XS7

Features:

Anti-vibration technology, stable weighing,faster speed and higher precision;

Change new indicator without re-calibration.

Calculation calibration without weight.

Low power design, with charging protection;

Axles measuring function;

Applications:

Truck scale, weighbridge, static axle scale, animal scale

Electronics

SPECIFICATION:

Power supply	AC100~260V
Built-in battery	DC6V, 4.5AH
AD conversion	24-bit Σ-Δ conversion 200 times / sec
Display range	-99999 ~ 999999
Division value	1,2,5,10,20,50,100 optional
Load cell excitation	Excitation voltage: DC5V Maximum Excitation current: 350mA (with 40pcs 700Ω load cells or 20pcs 350Ω load cells)
Load cell detection	mV/V detection, identify faulty or damaged load cell
Display mode	6-bit high-brightness 0.8-inch digital tube, 6 status indicator LED
Computer communication	full duplex RS232
Scoreboard communication	RS232, isolated 20mA current loop
Printer interface	standard 25pin parallel print interface
Built-in micro-printer	Built-in micro printer (G-X7P/G-XS7P)
Keyboard	film touch, full digital input, function keys, a total of 24 keys
Storage capacity	1200 sets of complete records, preset 255 tare value
Operating temperature	-10℃～+40℃
Storage temperature	-40℃～+80℃
Operating humidity	85% RH (no condensation)
Housing material	ABS(G-X7/X7P) Stainless steel(G-XS7/XS7P)
Dimension(mm)	295×216×155(G-X7/X7P) 310×235×120(G-XS7/XS7P)
Package dimension(mm)	360×345×200(G-X7/X7P) 388×320×188(G-XS7/XS7P)
Net weight	2.4kg(G-X7), 3.8kg(G-XS7)
